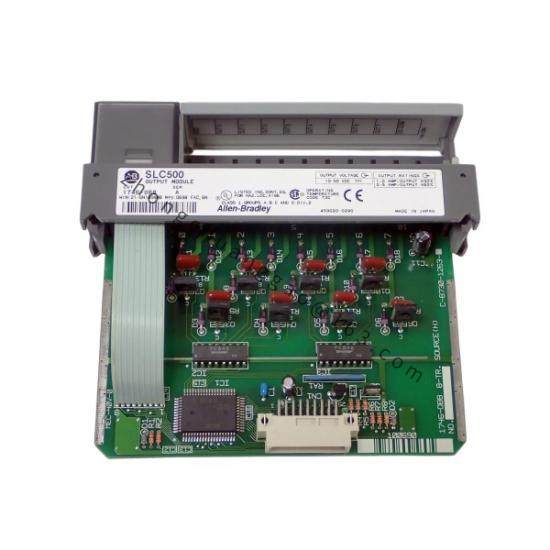

Allen Bradley 1746-OB8 Output Module for SLC 500
The Allen Bradley 1746-OB8 Output Module, part of the SLC 500 series, is designed for high-speed, reliable digital DC output control. It’s ideal for applications requiring precise and efficient signal transmission in industrial automation environments.
Detailed content
Model Number:1746-OB8
Manufacturer:Allen Bradley
Output Channels:8
Type:Digital DC Output
Voltage Range:5VDC to 50VDC
On-State Voltage Drop:1.2V
Off-State Output Leakage:1mA
Load Capacity:1mA
Current Rating:Continuous: 0.25A @ 60°C per channel
Isolation:Communication circuits: 500VDC, Backplane: 1500VAC
Temperature Range:0°C to 60°C
Environmental Conditions:5% to 95% relative humidity, non-condensing
The AB 1746-OB8 Output Module is a critical component in any SLC 500 system, ensuring high-performance and reliability in controlling various industrial processes.
Featuring an advanced design for precise analog output, this module supports a wide range of applications requiring accurate control signals, from temperature regulation to speed control in machinery.
With its robust temperature rating and durable construction, it’s suitable for harsh industrial environments, ensuring continuous operation under extreme conditions.
The module’s versatile communication protocol compatibility allows seamless integration with existing automation systems, streamlining the setup process and enhancing operational efficiency.
Easy to install with its panel mount design, the AB 1746-OB8 ensures a secure and convenient connection to your system, minimizing downtime and facilitating maintenance.
