Power Supply Voltage:DC 24V

Maximum Output Current:10A

Operating Temperature Range:-25°C to +70°C

Communication Interface:EtherCAT

Signal Processing Speed:10 kHz

Mechanical Dimensions:120mm x 80mm x 20mm

Weight:0.5kg

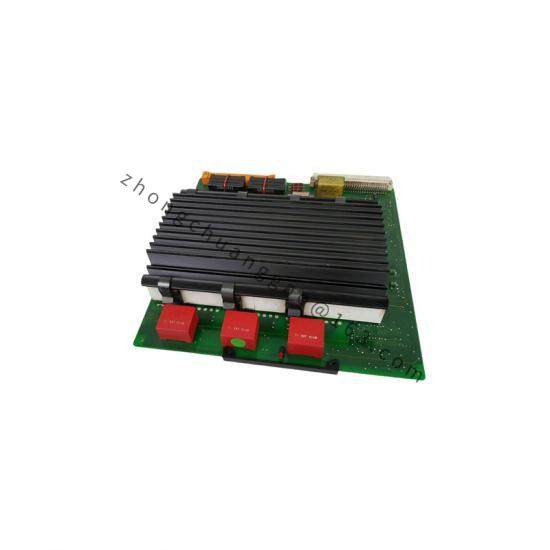

    The ABB YB560103-CC/9 Servo Amplifier Board is engineered with advanced digital signal processing technology to ensure seamless integration with a wide range of servo motors. Its compact design allows for easy installation in various industrial settings, while its robust construction ensures long-lasting performance under demanding conditions.

    Key features include real-time error correction algorithms that enhance system stability and reduce downtime. The integrated diagnostic functions provide detailed feedback on system health, enabling proactive maintenance and reducing maintenance costs.

    This amplifier board supports a variety of control protocols, facilitating compatibility with different PLC systems and motion control solutions. Its intuitive interface simplifies setup and configuration processes, saving valuable time and effort during the integration phase.

    Designed with user safety in mind, the YB560103-CC/9 incorporates overvoltage and short-circuit protection mechanisms, safeguarding against potential damage caused by electrical anomalies. Additionally, its compliance with international safety standards ensures a secure operating environment.

    For optimal performance and efficiency, the ABB YB560103-CC/9 Servo Amplifier Board is compatible with ABB‘s comprehensive suite of servo drives and controllers. This compatibility ensures a harmonized system that delivers superior control and energy management, enhancing overall productivity and operational excellence.
