Technical Specifications

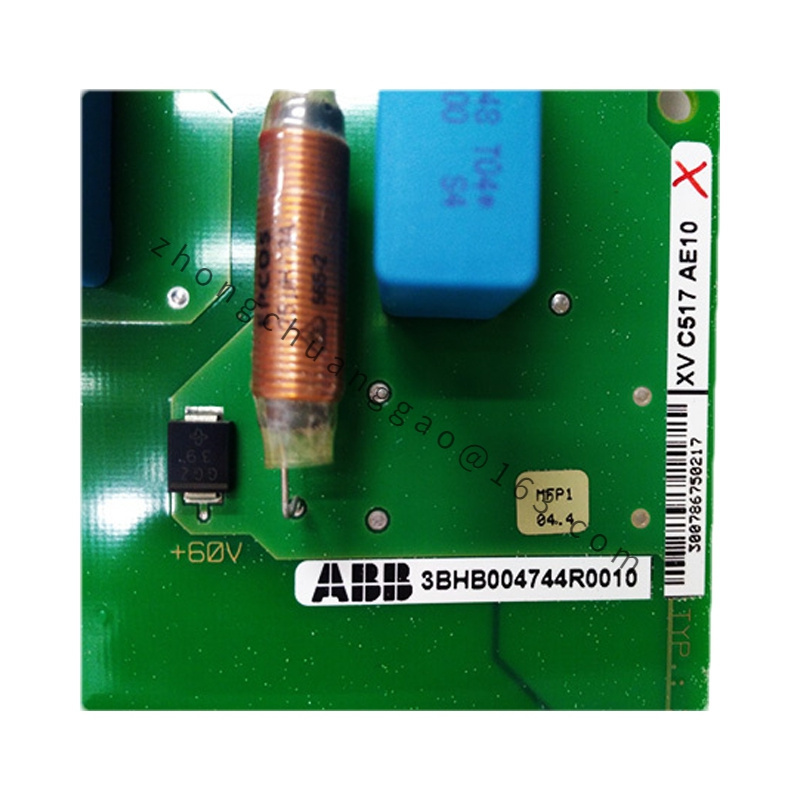

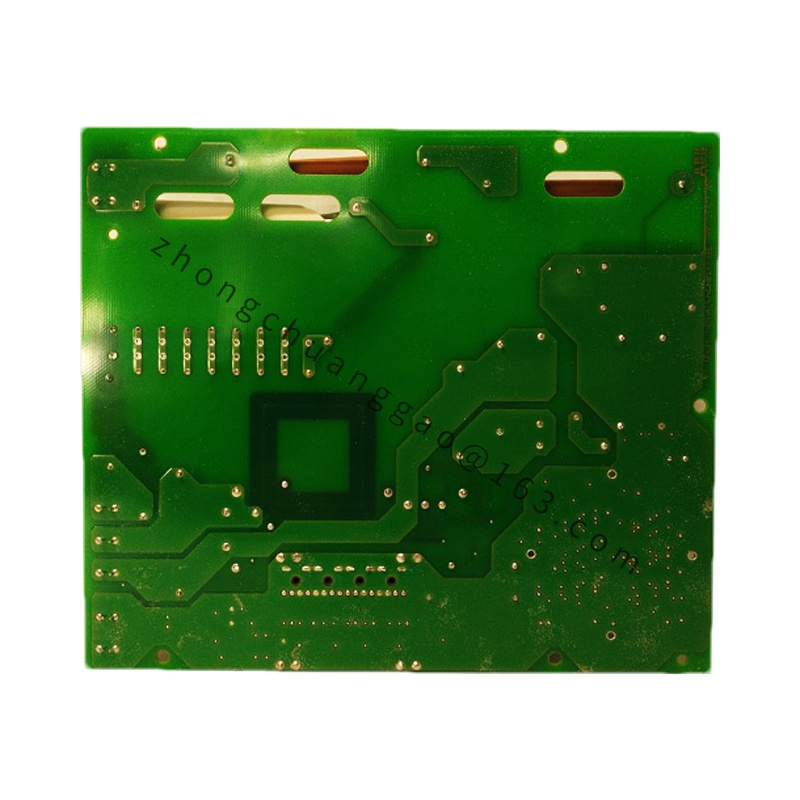

Model: XVC517AE10 3BHB004744R0010
Brand: ABB
Type: Variable Frequency Drive (VFD) / Inverter
Rated Power: 7.5 kW
Input Voltage: 380V AC
Output Voltage: 0-380V AC
Output Frequency: 0-60Hz
Maximum Current: 20A
Speed Accuracy: 0.01%
Efficiency: Up to 97%
Dynamic Response: Quick start and stop
Operating Temperature: -10°C to +40°C
Storage Temperature: -20°C to +60°C
Protection Class: IP20
Dimensions: 480 mm x 240 mm x 180 mm
Weight: 15 kg
Functional Features
High Accuracy: Offers 0.01% speed accuracy, suitable for precise applications.
High Dynamic Response: Provides fast start and stop capabilities, meeting the demands of rapidly changing loads.
High Efficiency: Achieves up to 97% efficiency, reducing energy consumption and operational costs.
Multiple Control Modes: Supports speed control, torque control, and position control, among others, catering to various application needs.
Compact Design: Space-saving design for easy integration into existing systems.
Durability and Reliability: Built with high-quality components to ensure long-term operation with minimal downtime.
Communication Interfaces: Equipped with communication ports for seamless integration with PLCs and other automation systems.
Application Scenarios
Industrial Automation: Used in various industrial processes, including temperature control, motor control, and furnace control, for precise and reliable operation.
Power Systems: Deployed in power systems for voltage and current control, enhancing the stability and efficiency of power transmission and distribution networks.
HVAC Systems: Controls the speed and torque of fans and pumps in HVAC systems, optimizing energy consumption and maintaining indoor comfort.
Material Handling: Utilized in conveyor belts, cranes, and other material handling equipment for smooth and efficient operation.
Machine Tools: Employed in lathes, milling machines, and other CNC machines to achieve precise speed and torque control during machining processes.
Building Automation: Integrated into building automation systems for efficient control of elevators, escalators, and other building services.
