Technical Specifications

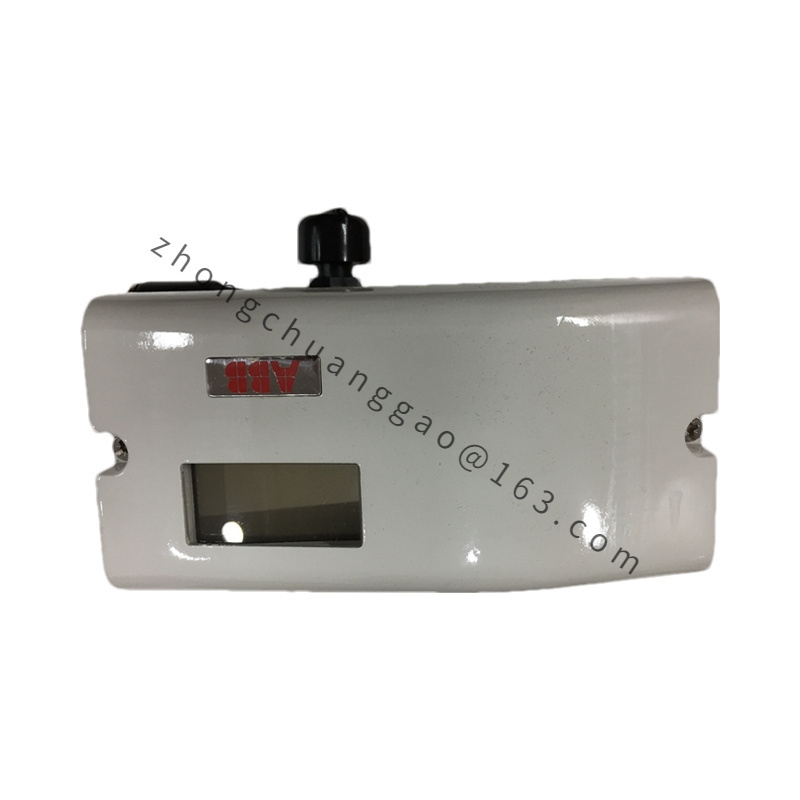

Model Number: V18345-1010521001
Series: TZID-C
Drive Energy: Pneumatic
Positioning Precision: High accuracy, suitable for both rotary and linear actuators
Stroke Range:
Linear Actuator: 20 to 150 mm
Rotary Actuator: Up to 125 degrees
Air Consumption: ≤ 0.03 kg/hour
Air Capacity: ≥ 13.5 kg/hour
Temperature Range: -40°C to +85°C
Vibration Resistance: Up to 10g, 10-150 Hz
Communication Interfaces: Supports HART, Profibus, and FF for real-time communication with control rooms
Control Signal: 4 to 20 mA
Feedback: Analog and/or digital position feedback, with optional sensors
Material: Aluminum housing with a durable finish
Functional Characteristics
Microprocessor-Controlled: Features advanced microprocessing technology for precise control and high-performance operation.
Intelligent Configuration: Easily configurable through an integrated LCD display and operation panel or via communication interfaces.
Three-Way Protection: Offers protection against power failure, air supply interruption, and signal loss, ensuring system reliability.
Self-Diagnostics and Alarm Monitoring: Provides self-diagnostics and alarm monitoring functions for easy troubleshooting and maintenance.
Position Compensation: Incorporates temperature and position compensation mechanisms for improved accuracy and stability.
High-Performance Feedback: Offers both analog and digital position feedback options, allowing for accurate monitoring and control.
Modular Design: Enables upgrades and enhancements to the basic model through modular design.
Application Scenarios
Industrial Automation: Widely used in industrial automation systems for precise control of valves in various processes.
Process Control: Applied in process control industries, such as oil and gas, petrochemicals, power generation, and water treatment, to ensure efficient and safe operation of valves.
Hazardous Environments: Suitable for use in hazardous environments due to its robust design and safety features, such as “fail-safe” and “fail-freeze” modes.
High-Vibration Areas: Capable of operating in high-vibration areas thanks to its vibration resistance up to 10g, 10-150 Hz.
