Technical Specifications

• Power Supply: Typically operates on DC voltages, commonly 24V DC or 48V DC, depending on the specific configuration.
• Communication Protocols: Supports industry-standard communication protocols such as MODBUS, PROFIBUS, and IEC 61850, enabling integration with various control systems.

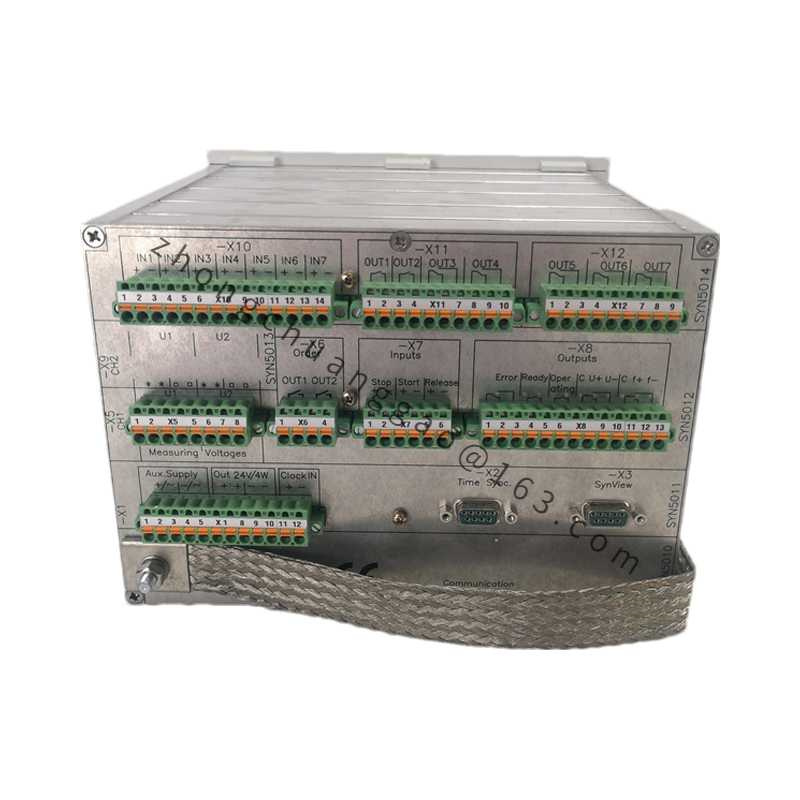

• Inputs/Outputs:
  • Digital Inputs: Multiple digital inputs for receiving signals from various components.
  • Digital Outputs: Several digital outputs for control and signaling functions.
  • Analog Inputs: Used for monitoring electrical parameters like voltage, frequency, and current.
• Operating Temperature: Designed to operate effectively within a temperature range of -20°C to +60°C (-4°F to +140°F).
• Mounting: Typically designed for DIN rail or panel mounting, allowing for flexible installation.

Features

• Precision Synchronization: Offers accurate synchronization capabilities to ensure smooth and stable integration of generators with the electrical grid.
• Real-time Monitoring: Provides real-time monitoring and data acquisition for synchronization parameters, enhancing operational oversight.
• Configurable Settings: Features highly configurable settings to adapt to various synchronization requirements and operational scenarios.
• Robust Performance: Engineered for high reliability and robustness, crucial for maintaining system stability in diverse operating conditions.

Applications

• Power Generation: Used in power generation facilities to synchronize generators with the grid, ensuring efficient and stable power delivery.
• Power Distribution: Applied in electrical distribution networks to manage synchronization across multiple power sources.
• Industrial Applications: Suitable for industrial environments where precise synchronization of electrical systems is required.
• Substation Control: Integral in substations for managing synchronization and ensuring reliable operation of power distribution equipment.
