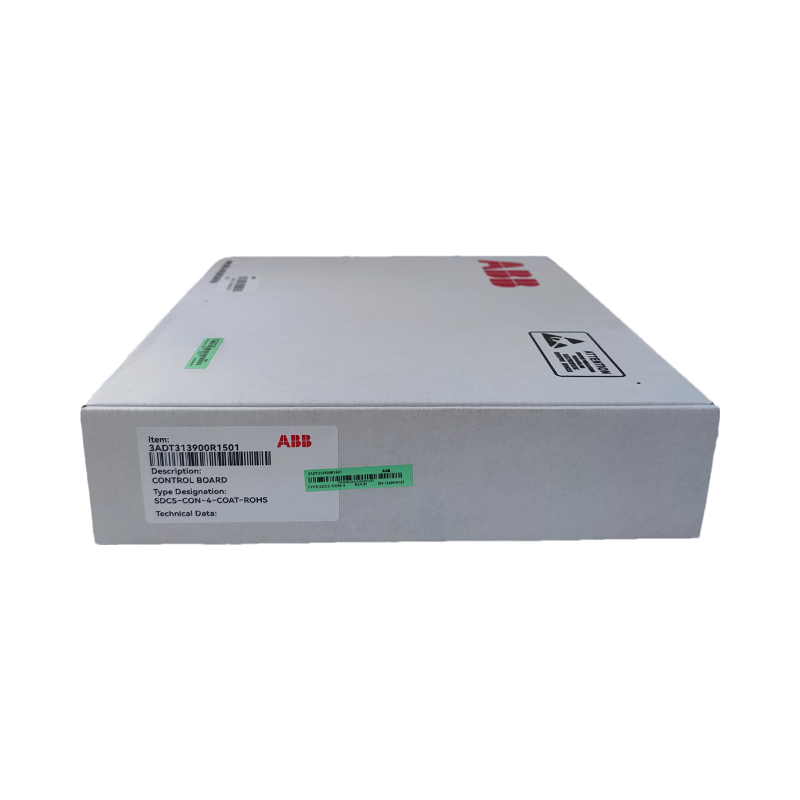

ABB SDCS-CON-4

The ABB SDCS-CON-4 is a control board designed for distributed control systems, particularly the DCS800 series. Below is a detailed overview of its technical specifications, functional features, and application scenarios.

Detailed content

1. Technical Specifications

  • Power Supply: Operates on 24V DC.
  • Power Consumption: ≤20W.
  • Operating Temperature: -20°C to 70°C.
  • Storage Temperature: -40°C to 85°C.
  • Dimensions: 230 x 160 x 50 mm.
  • Weight: 1.5 kg.
  • Processor: Intel Core i7.
  • Memory: 8 GB DDR4.
  • Storage: 256 GB SSD.
  • Communication Interfaces: RS-232, RS-485, and Ethernet.

2. Functional Features

  • Digital I/O: Supports up to 40 inputs and 40 outputs for digital signals.
  • Analog I/O: Supports up to 8 inputs and 4 outputs for analog signals, including voltage ranges like 0-10V and current ranges like 0-20mA.
  • High-Speed Counting and Pulse Output:
    • High-speed counting inputs support 2 single-phase or 2 AB-phase inputs with a frequency up to 100 KHz.
    • High-speed pulse outputs support up to 20 KHz, with the option to be customized to 200 KHz.
  • Communication Options:
    • Standard RS-232 interface.
    • Optional RS-485 interfaces (up to 2).
  • Cable Management: The board is designed to help organize and secure cables, reducing clutter and simplifying maintenance.
  • Safety Features: Includes shielding for weak electrical signals, separate wiring for main and control cables, and voltage matching options to prevent damage to components.

3. Application Scenarios

The ABB SDCS-CON-4 is versatile and widely used in various industrial and commercial settings:

  • Industrial Control: Suitable for discrete manufacturing, process control, and automation systems.
  • Building Automation: Used in HVAC, lighting, and other building management systems.
  • Power Systems: Applied in power generation, distribution, and utility management.
  • Transportation: Utilized in railway, automotive, and logistics automation.
  • Oil and Gas: Employed in exploration, production, and pipeline control systems.
  • Other Industries: Also effective in public utilities, energy management, and chemical processing.

4. Additional Information

The ABB SDCS-CON-4 is known for its high reliability, strong scalability, and ease of maintenance, making it a preferred choice for complex control applications. Its modular design allows for flexible installation, upgrades, and maintenance, ensuring long-term performance in demanding environments.

This control board is particularly suited for scenarios requiring precise signal processing, high-speed data communication, and robust industrial control capabilities. Its compatibility with a wide range of communication protocols and signal types makes it a valuable asset in modern automation systems.
