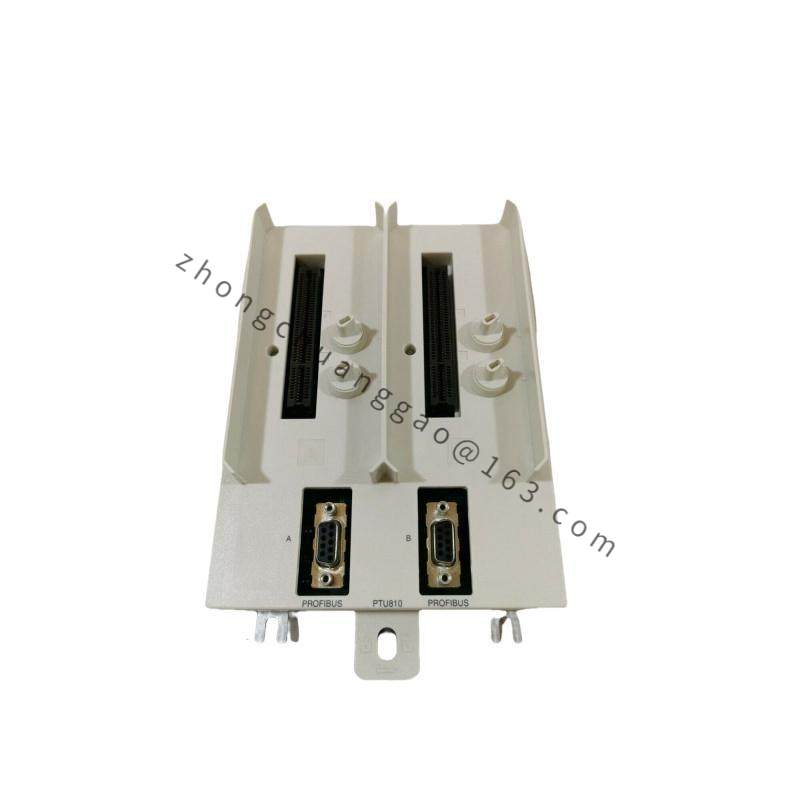

ABB PTU810A – Advanced Module Termination Unit, Combining Precision and Efficiency
The ABB PTU810A Module Termination Unit is a specialized component designed for precise control and data termination in industrial automation systems, ensuring reliable operation and enhanced efficiency.
Detailed content
Type:Termination Unit
Model Number:PTU810A
Manufacturing Company:ABB
Operating Temperature Range:-25°C to +60°C
Input Voltage Range:12VDC – 36VDC
Current Capacity:Up to 10A
Connector Type:M12 X Circular Connector
Material:Dielectric Polymers & Stainless Steel
Size (WxHxD):90mm x 60mm x 40mm
Weight:0.25kg
Communication Interface:RS485
The ABB PTU810A Module Termination Unit is engineered to deliver superior performance and reliability in harsh industrial environments, ensuring seamless integration with ABB‘s comprehensive automation solutions.
This module is equipped with a robust design featuring dielectric polymers and stainless steel components, guaranteeing longevity and resistance against wear and tear.
With its wide operating temperature range (-25°C to +60°C), the PTU810A can withstand extreme conditions without compromising functionality or performance.
Supporting voltage ranges from 12VDC to 36VDC and a current capacity up to 10A, it offers flexible compatibility with various power sources and system requirements.
Equipped with an M12 X circular connector, the unit ensures secure and efficient data transmission, enabling reliable communication within industrial networks.
