• Power Supply:
  • 24 V DC ±15% (19.2–27.6 V DC) with reverse polarity protection.
• Signal Conditioning:
  • Built-in EMC/EMI filtering ensures noise-free operation in harsh environments.
  • Overvoltage protection (up to 60 V DC) on input channels.
• Physical Dimensions:
  • 170 mm (W) × 110 mm (H) × 80 mm (D) (DIN rail-mounted design).
  • 0.8 kg weight for easy installation.
• Environmental Ratings:
  • Operating temperature: -25°C to +60°C (wide industrial range).
  • IP20 protection against solid particles.
  • Compliance with IEC 61131-2 (PLC standards) and CE/UL certifications.

Functional Features

1. Modular Design:
   • Expandable via PPD-BUS for additional I/O modules (e.g., analog inputs, temperature sensors).
   • Hot-swap capability allows maintenance without system downtime.
2. Real-Time Performance:
   • Cycle time < 1 ms for high-speed control loops.
   • Built-in watchdog timer detects and recovers from communication failures.
3. Diagnostics:
   • LED indicators for power, communication status, and channel faults.
   • Self-diagnostic software enables predictive maintenance.
4. Safety Compliance:
   • Supports SIL 2 (IEC 61508) for safety-critical applications when paired with redundant systems.
5. Configuration:
   • Configurable via ABB Control Builder F or Automation Builder software.
   • User-friendly web interface for remote parameter adjustment.

Application Scenarios

1. Manufacturing Automation:
   • Controls conveyor belts, pneumatic systems, and robotics in automotive assembly lines.
   • Monitors machine status (e.g., temperature, vibration) for predictive maintenance.
2. Process Industries:
   • Manages dosing systems in chemical plants and mixing processes in food production.
   • Optimizes energy consumption in HVAC systems via real-time load balancing.
3. Building Automation:
   • Integrates lighting control, security systems, and HVAC in smart buildings.
   • Monitors elevator performance and fire safety systems.
4. Energy Management:
   • Coordinates solar panel arrays and battery storage systems for grid synchronization.
   • Controls wind turbine pitch angles for optimal energy capture.
5. Water Treatment:
   • Regulates pump stations and chlorination processes in wastewater treatment plants.

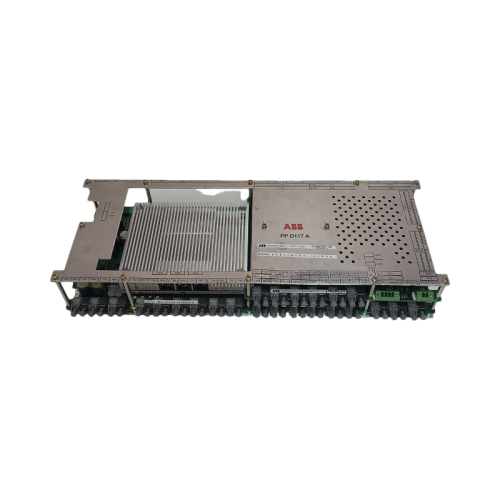

ABB 3BHE030410R3011: High-Performance Excitation Controller

Technical Specifications

• Power Supply:
  • 24 V DC ±15% (19.2–27.6 V DC) with reverse polarity protection.
• Communication Interfaces:
  • Ethernet TCP/IP for remote diagnostics and firmware updates.
  • Modbus RTU and Profibus DP for integration with PLCs and HMIs.
• Control Capabilities:
  • Precision voltage regulation (±0.5% accuracy) via dynamic adjustment of excitation current.
  • Real-time feedback control with cycle time < 1 ms for fast response to load variations.
• Signal Conditioning:
  • Built-in EMC/EMI filtering mitigates noise in harsh environments.
  • Overvoltage protection (up to 60 V DC) on input channels.
• Environmental Ratings:
  • Operating temperature: -25°C to +60°C (wide industrial range).
  • IP20 protection against solid particles.
  • Compliance with IEC 61131-2 (PLC standards) and CE/UL certifications.
• Physical Dimensions:
  • 170 mm (W) × 110 mm (H) × 80 mm (D) (DIN rail-mounted design).
  • 0.8 kg weight for easy installation.

Functional Features

1. Voltage Regulation:
   • Maintains generator output voltage within tight tolerances under varying loads, ensuring grid stability.
2. Real-Time Monitoring:
   • Continuously monitors generator parameters (voltage, current, frequency) and adjusts excitation in real time.
3. Redundancy Support:
   • Enables dual-channel redundancy for high-availability systems, with seamless switchover in <10 ms.
4. Protection Mechanisms:
   • Built-in overcurrent, undervoltage, and thermal overload protection safeguards equipment.
   • Self-diagnostic software facilitates predictive maintenance and fault detection.
5. Flexible Configuration:
   • Configurable via ABB Control Builder F or Automation Builder software.
   • Supports PLCopen Motion Control profiles for multi-axis automation.
6. Modular Design:
   • Expandable via PPD-BUS for additional I/O modules (e.g., analog inputs, temperature sensors).
   • Hot-swap capability allows maintenance without system downtime.

Application Scenarios

1. Power Generation:
   • Controls excitation systems in thermal power plants, hydroelectric generators, and gas turbines.
   • Ensures grid synchronization in wind farms and solar power installations.
2. Industrial Automation:
   • Manages voltage regulation in large industrial motors (e.g., pumps, compressors) for process stability.
   • Optimizes energy efficiency in chemical plants and mining operations.
3. Marine and Offshore:
   • Regulates power output in shipboard generators and offshore platforms under fluctuating loads.
4. Grid Integration:
   • Supports smart grid applications by enabling dynamic voltage control and reactive power management.
5. Emergency Power Systems:
   • Maintains stable voltage in backup generators for critical infrastructure (hospitals, data centers).

Integration and Compatibility

Compliance and Certifications

• Standards: Both meet IEC 61131-2 (PLC hardware) and IEC 61800-5-1 (adjustable-speed drives).
• Safety: CE Marked for EU directives and UL 508 compliant.
• Environmental: Adhere to RoHS and WEEE standards for material safety.
