Display screen: With high resolution, it can clearly display images and text, providing a good user experience.
Power Supply Voltage: Supports multiple power supply voltage options, including 115/240 V AC/DC (for certain digital expansion modules) and 24 V DC (for other modules).
Interface and Communication:
Communication interface: Supports multiple communication protocols and interfaces, such as AS Interface, KNX (Instabus Building Automation Network), and Profibus DP bus, which can achieve data exchange and communication with control systems or other devices.
Fiber optic interface: Supports 155M dual optical interface, supports fiber optic transmission Profibus DP bus, has features such as peer-to-peer transmission and data bus arbitration, can achieve high-speed long-distance transmission, electrical and ground wire isolation, and reduce interference.
Other interfaces: may also include other interfaces used to connect and control devices.
Scalability:
It can be expanded to 24 inputs, 16 outputs, 8 simulated inputs, and 2 simulated outputs.
Provide various digital extension modules and imitation extension modules, such as DM8 230R, DM16 230R, DM8 24, DM16 24, etc., for expanding digital inputs and outputs; AM2, AM2 RTD, AM2 AQ and other modules are used to expand imitation and temperature I/O.
2、 Functional Features
Touch screen interface: Users can intuitively interact and operate with the control system through the touch screen, improving the convenience of operation.
Graphic interface: Usually equipped with a graphical interface, it can display device status, parameters, charts, and other information, providing an intuitive operating interface.
Multi touch: Supports multi touch technology, allowing users to operate with their fingers or stylus, improving the flexibility and convenience of operations.
Remote access and control: Supports remote access and control functions, making it convenient for users to perform remote operations and management.
Durability and anti-interference ability: It has good durability and anti-interference ability, suitable for long-term stable operation in industrial environments.
Customized interface: Supports interface customization, allowing users to customize the interface layout and functional buttons according to their actual needs, achieving a personalized operating interface.
3、 Application scenarios

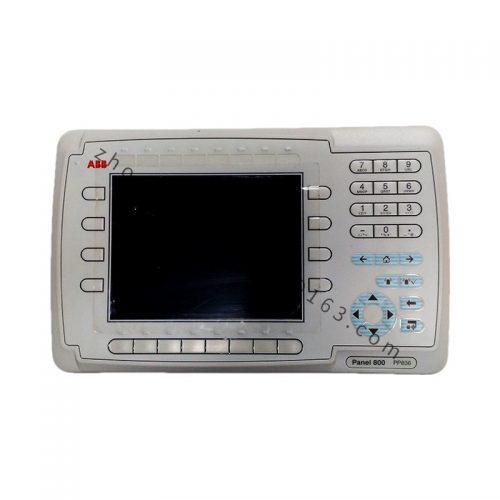

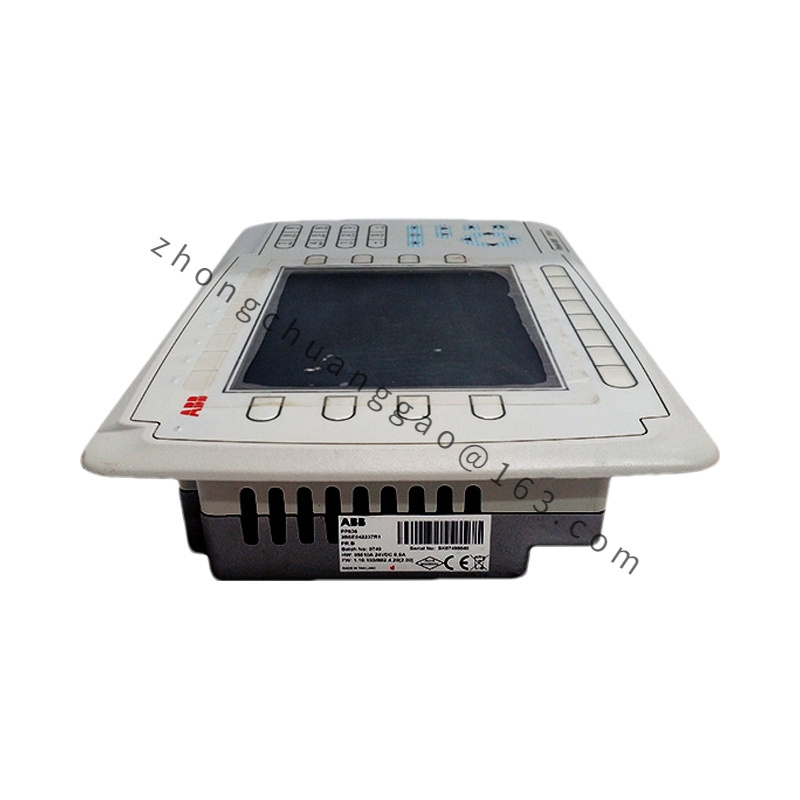

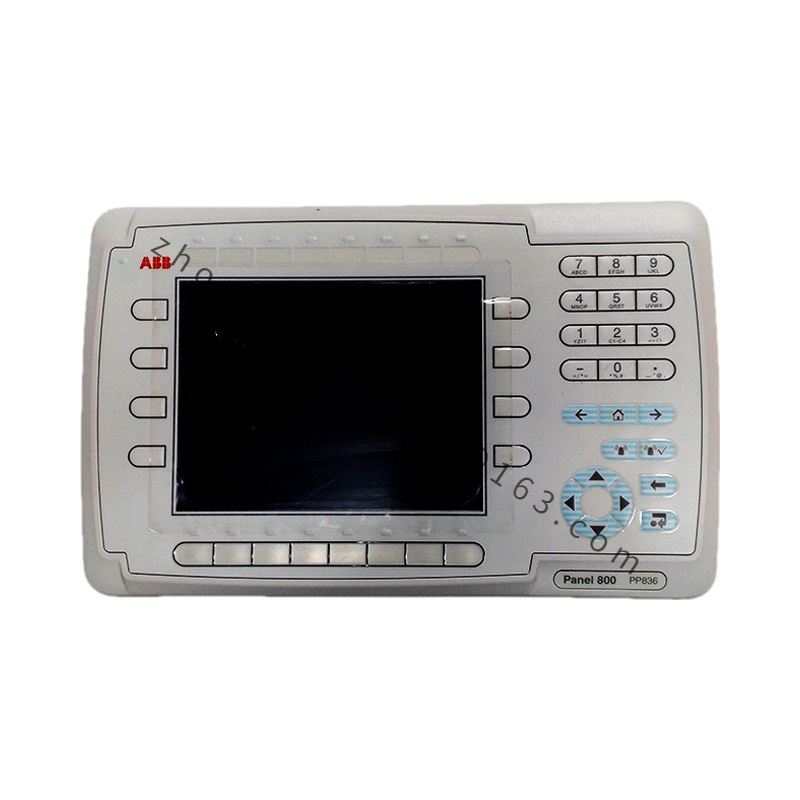

The ABB PP836 3BSE042237R1 touch screen module is widely used in various industrial control systems and equipment, including but not limited to:
Production line control
Equipment monitoring
process control
Packaging Machinery
Plastic Machinery
Printing and dyeing, printing, and pressing equipment
Hoisting machinery
Energy optimization
Intelligent Building
Marine equipment control
Wind power generation system
Municipal pumping station
Air conditioning refrigeration system
Municipal Engineering
Environmental Protection Engineering
Steel metallurgy
petrochemical industry
Power automation
