Power Rating:1200V / 5A

Thermal Design:Efficient heat dissipation for extended reliability

Insulation Class:Class H (180°C)

Operating Temperature Range:-40°C to +175°C

Mechanical Interface:Standardized mounting for seamless integration

Electrical Interface:High-reliability connections ensuring stable operation

Material:Advanced semiconductor materials for superior conductivity

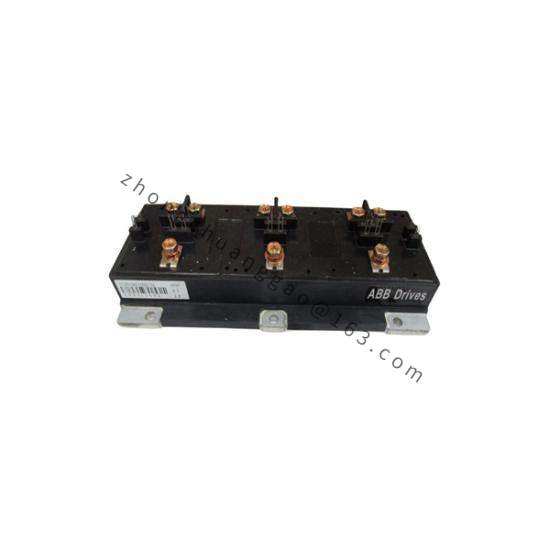

    The ABB PP30012HS-ABBN-5A IGBT Module is engineered for demanding high-speed applications, offering unparalleled performance in industrial automation and electric drive systems.

    With a robust power rating of 1200V and 300A, this module is capable of handling high currents efficiently, making it ideal for complex machinery and power management tasks.

    Equipped with advanced semiconductor technology, the module boasts a high switching frequency of up to 50 kHz, ensuring swift response times and enhanced system efficiency.

    Operating within a wide temperature range from -40°C to +175°C, the ABB PP30012HS-ABBN-5A is designed for extreme environments, ensuring reliable performance under diverse conditions.

    Featuring forced air cooling, this IGBT Module ensures continuous operation with minimal heat dissipation, extending its operational life beyond 10 million switching cycles, guaranteeing longevity and maintenance-free operation.
