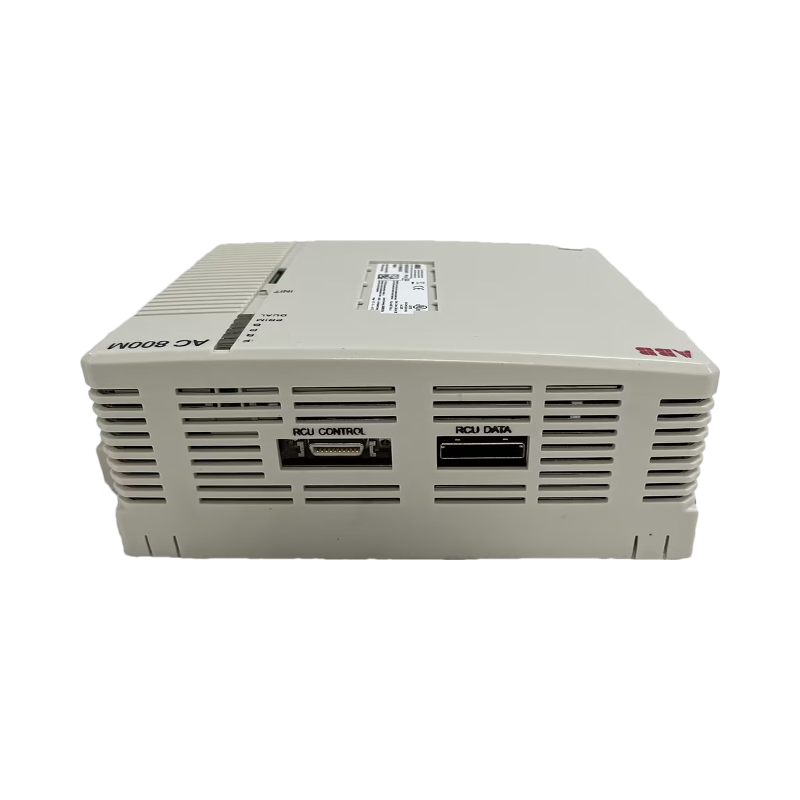

• I/O Capability:
  • Supports 7 optical clusters of S800 I/O modules (up to 84 modules total) for analog/digital signal processing .
  • No built-in I/O; requires external modules for field device integration.
• Physical Dimensions:
  • 174 mm (W) × 186 mm (H) × 94 mm (D) (compact rail-mounted design) .
  • 1.6 kg weight (including base) .
• Environmental Ratings:
  • Operating temperature: +5°C to +55°C (industrial-grade stability) .
  • Storage temperature: -40°C to +70°C .
  • IP20 protection against solid particles .
  • Compliance with IEC 61131-2 (PLC standards) and CE/UL certifications .

Functional Features

1. Redundancy Support:
   • Enables CPU redundancy (dual controllers with <10 ms switchover time) for high-availability systems .
   • Redundant Ethernet and CEX-Bus interfaces ensure uninterrupted communication .
2. Real-Time Performance:
   • 0.043 ms per 1000 boolean operations for fast control loop execution .
   • Built-in real-time clock (50 ppm stability) for synchronized data logging .
3. Scalable Architecture:
   • Expandable via CEX-Bus with up to 12 communication modules (e.g., Profibus DP, Ethernet/IP) .
   • Supports S800 I/O clusters for distributed control in large-scale plants .
4. Diagnostics and Maintenance:
   • LED indicators for power, CPU status, and communication health .
   • Web server access for remote monitoring and firmware updates 14.
5. Software Compatibility:
   • Configurable via ABB Automation Builder and Control Builder F for ladder logic, function block diagrams, and motion control programming 13.
   • Supports PLCopen Motion Control profiles for cross-vendor interoperability .

Application Scenarios

1. Industrial Process Control:
   • Manages complex processes in oil and gas, chemical plants, and power generation (e.g., turbine control, distillation units) .
   • Optimizes water treatment systems (pump control, dosing processes) .
2. Manufacturing Automation:
   • Coordinates robotics, CNC machines, and conveyor systems in automotive and electronics production .
   • Ensures precision in food and beverage packaging lines .
3. Building Automation:
   • Integrates HVAC systems, lighting, and security systems in smart buildings .
4. Energy Management:
   • Monitors solar farms and wind turbines for grid synchronization and efficiency optimization .
5. Marine and Rail:
   • Controls shipboard power distribution and locomotive traction systems .

Integration and Compatibility

• System Integration:
  – ABB’s System 800xA DCS for centralized data analytics and asset management .
  • Interfaces with Emax 2 circuit breakers and UNIFLEX power modules for unified power control .
• Third-Party Interoperability:
  • Supports Modbus TCP, Ethernet/IP, and IEC 61850 for integration with legacy systems .
• Safety Compliance:
  • While the PM891K01 itself is not SIL-certified, it can be paired with SM812 modules and SIL-rated software to achieve IEC 61508 SIL 3 compliance for safety-critical applications 12.
