1、 Technical specifications
Technical parameter description

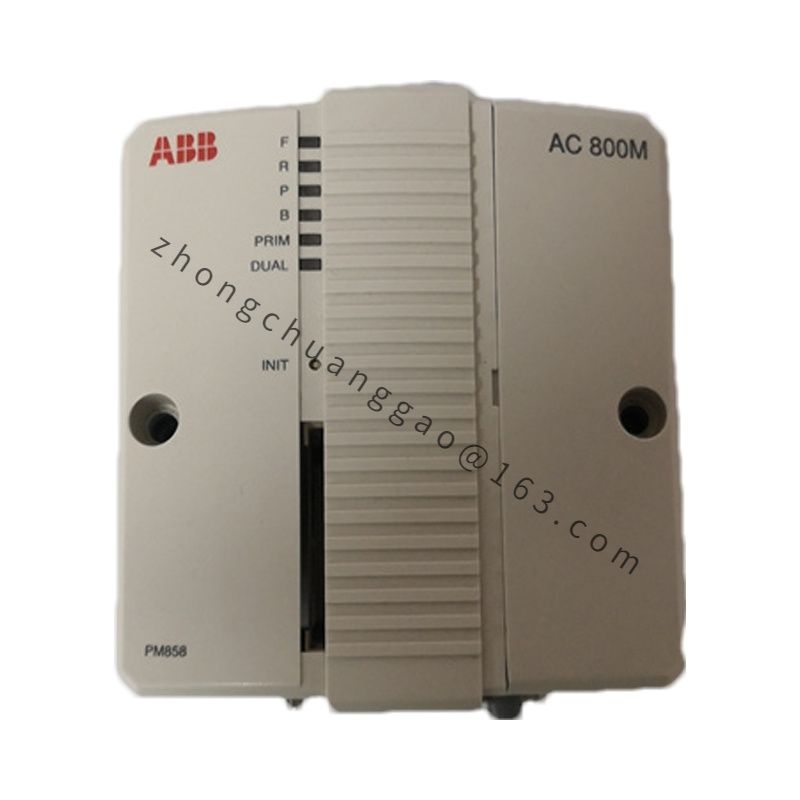

Model PM858 3BSE093350R1
Processor model MPC866 (or other new processors provided based on SKU)
Supports up to 8 GB of DDR3L memory expansion
Connect two RJ45 Ethernet ports (CN1, CN2) and two RJ45 serial ports (COM3, COM4) to the network, where COM3 is the RS-232C port with modem control signal and COM4 is the isolated port
Power supply 24V DC (19.2-30V DC)
4 MB flash PROM for firmware storage
Switching time maximum 10 ms (red switching time)
32 applications per controller
64 programs per application
128 charts per application
32 tasks per controller
Cycle time as low as 1 millisecond per application, with 32 different cycle times available
2、 Functional Features
High performance processors: Provide new processors with multiple performance levels to meet different application requirements.
Large memory support: Supports up to 8 GB of DDR3L memory expansion, providing sufficient memory space for running large programs and processing large amounts of data.
Enhanced multimedia performance: Enhanced display resolution and improved audio engine, suitable for applications that require high-quality multimedia performance, such as media intensive applications like games and information kiosks.
Network connection: Provides two Ethernet ports and two serial ports, supports multiple communication protocols, and facilitates integration with other devices or systems.
CPU redundancy support: Supports CPU redundancy, including CPU, CEX Bus, communication interface, and S800 I/O redundancy support, to improve system availability and reliability.
I/O customization capability: Provides dual channel 100 MS/s 14 bit analog input and dual channel 100 MS/s 16 bit analog output baseband transceiver adapters, suitable for customizing baseband interfaces and ultra high speed control applications.
Usability: It has a simple DIN rail connection/disconnection program and uses a unique sliding and locking mechanism for easy installation and maintenance by users. At the same time, all baseboards provide an Ethernet address, which provides hardware identification for each CPU for easy management.
3、 Application scenarios
ABB PM858 3BSE093350R1 is suitable for various industrial automation and control systems, including but not limited to:
Process control: Used in industries such as chemical, petroleum, and natural gas to monitor and control complex production processes.
Machine control: In manufacturing, it is used to control various machines and equipment on the production line to ensure production efficiency and product quality.
Data collection and monitoring: In situations where real-time data collection and monitoring are required, such as environmental monitoring, energy management, etc.
Remote control and communication: Supports remote control and communication functions, facilitating remote monitoring and maintenance.
4、 Summary
ABB PM858 3BSE093350R1 plays an important role in industrial automation and control systems due to its high performance, large memory support, enhanced multimedia performance, rich network connectivity options, and CPU redundancy support. It is suitable for various complex application scenarios and can meet the needs of different industries for high performance, high reliability, and high availability.
