1、 Technical specifications

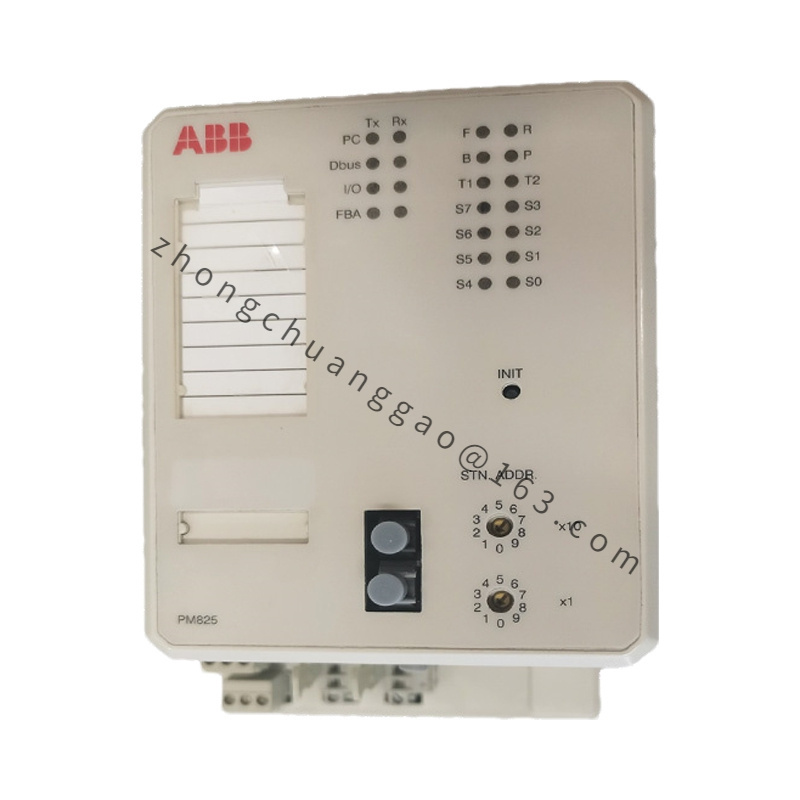

Brand and model: ABB PM825, some specific models such as 3BSE010796R1.
Size and Weight: The net weight of the product is approximately 1 kilogram. The specific size may vary depending on the model, but the approximate net depth/length is 225 millimeters, net height is 108 millimeters, and net width is 135 millimeters (data from Baijia Hao).
Hardware design: Based on the MC68360 microprocessor, it runs at 25MHz in 16 bit mode to ensure fast processing speed.
Storage capacity: The system and user applications are stored in 1024 KB and 512 KB FLASH respectively, while 1024 KB RAM is used for the execution of the system and user applications, providing powerful data processing and storage capabilities.
2、 Functional Features
Servo control: PM825 is mainly used for high-precision control of servo motors, including position control, speed control, torque control and other functions, which can achieve precise motion control.
Multiple control modes: Supports multiple control modes, such as position control mode, speed control mode, torque control mode, and position/speed/torque hybrid control mode, to meet the needs of different application scenarios.
Real time monitoring: It can monitor the operating status of servo motors in real time, including parameters such as position, speed, torque, etc., and provide real-time feedback and diagnostic information.
Communication interface: It may have multiple communication interfaces, such as Ethernet, CAN bus, RS485, etc., to facilitate data exchange and remote monitoring with other devices or systems.
Programming flexibility: Supports flexible programming methods, allowing users to set parameters and control logic programming as needed, achieving personalized control functions.
User Interface: The user interface design is user-friendly, including DriveWindow, Modbus protocol panel, and printer, making it easy for users to operate, monitor, and troubleshoot.
Reliability and Stability: As a key application controller, PM825 has high reliability and stability, capable of stable operation in harsh environments and ensuring precise control of servo motors.
3、 Application scenarios
ABB PM825 is suitable for automation and control systems in various industrial fields, including but not limited to:
Mechanical processing: Used in CNC machine tools, machining centers, and other mechanical processing equipment to precisely control the motion of servo motors and achieve high-precision machining.
Automated production line: On an automated production line, it is used to control and manage the movement of various automated equipment, improve production efficiency and product quality.
Robot control: In industrial robot control systems, as the core control unit, it achieves precise control of the robot’s motion trajectory, speed, and force.
