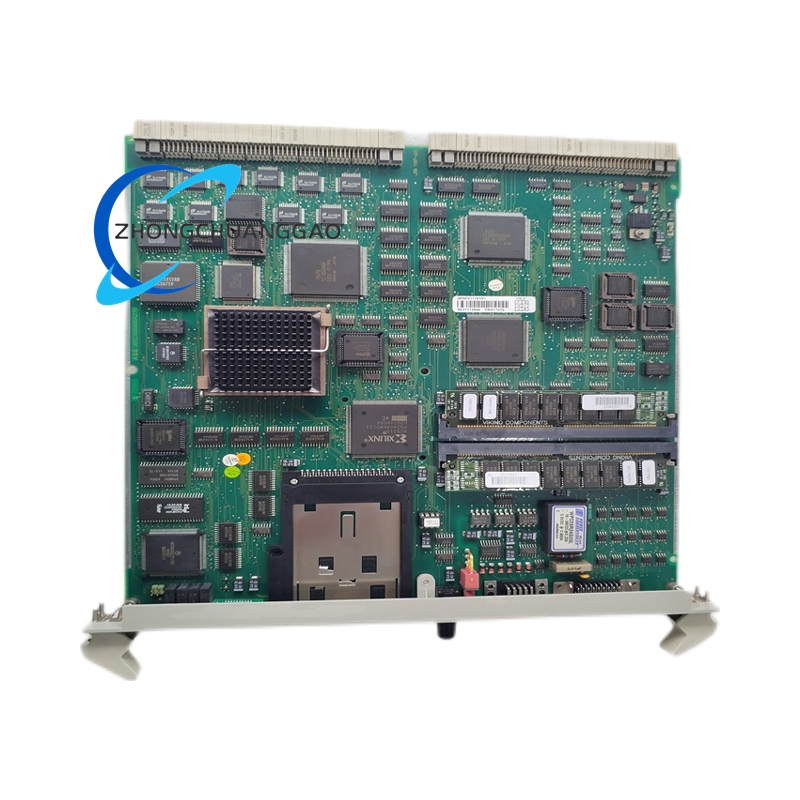

ABB PM511V16 Processor Module
1. Technical Specifications
• Processor: Motorola MC68040 running at 25 MHz
• Memory:
– Version PM511V08: 8 MB dynamic RAM with ECC
– Version PM511V16: 16 MB dynamic RAM with ECC (upgrade kit available)
• Storage: system program held on PCMCIA flash card (program card)
• Power supply: 24 VDC ±20 %, consumed via backplane
• Mechanical: single-slot 6U VME board, 160 mm × 160 mm × 120 mm, 0.8 kg
• Operating temperature: 0 °C to +70 °C
• Indicators: front-panel LEDs and four-position rotary switch for start / mode selection plus restart push-button
Detailed content
Interfaces:
– Service port for Advant Station 140
– S100 I/O bus extension port
– Program card slot
– Service port for Advant Station 140
– S100 I/O bus extension port
– Program card slot
2. Functional Highlights
• Central CPU for Advant Controller 450 and Advant OCS platforms
• Hot-standby redundancy: two identical PM511V modules operate in master / backup pairs; switch-over < 25 ms, bumpless
• Real-time multitasking kernel executing user application and system diagnostics simultaneously
• On-line configuration and diagnostics via front service port without interrupting control tasks
• Non-volatile program card ensures rapid recovery after power loss or CPU replacement
• Built-in error-correcting RAM and watchdog timer for high reliability
• Central CPU for Advant Controller 450 and Advant OCS platforms
• Hot-standby redundancy: two identical PM511V modules operate in master / backup pairs; switch-over < 25 ms, bumpless
• Real-time multitasking kernel executing user application and system diagnostics simultaneously
• On-line configuration and diagnostics via front service port without interrupting control tasks
• Non-volatile program card ensures rapid recovery after power loss or CPU replacement
• Built-in error-correcting RAM and watchdog timer for high reliability
3. Application Scenarios
• Oil & gas: offshore platforms, refineries, pipeline control
• Power generation: turbine control, grid management, substation automation
• Chemical & pharmaceutical: batch reactors, continuous process lines
• Discrete manufacturing: high-speed packaging, assembly stations, material handling
• Building automation: HVAC, lighting, access control systems
• Transportation: rail traction control, automotive test rigs
• Oil & gas: offshore platforms, refineries, pipeline control
• Power generation: turbine control, grid management, substation automation
• Chemical & pharmaceutical: batch reactors, continuous process lines
• Discrete manufacturing: high-speed packaging, assembly stations, material handling
• Building automation: HVAC, lighting, access control systems
• Transportation: rail traction control, automotive test rigs
4. Redundancy & Expansion
• Dual-CPU redundancy link integrated on board—no external hardware required
• Supports redundant S100 I/O bus extensions for fault-tolerant field I/O
• Compatible with SC510 and SC520 submodule carriers for additional communication interfaces
• Dual-CPU redundancy link integrated on board—no external hardware required
• Supports redundant S100 I/O bus extensions for fault-tolerant field I/O
• Compatible with SC510 and SC520 submodule carriers for additional communication interfaces
5. Ordering & Support Package
• Module: PM511V08 or PM511V16
• PCMCIA program card with controller firmware
• Installation and configuration manual
• Factory test and conformity certificate
• Module: PM511V08 or PM511V16
• PCMCIA program card with controller firmware
• Installation and configuration manual
• Factory test and conformity certificate
