Technical Specifications

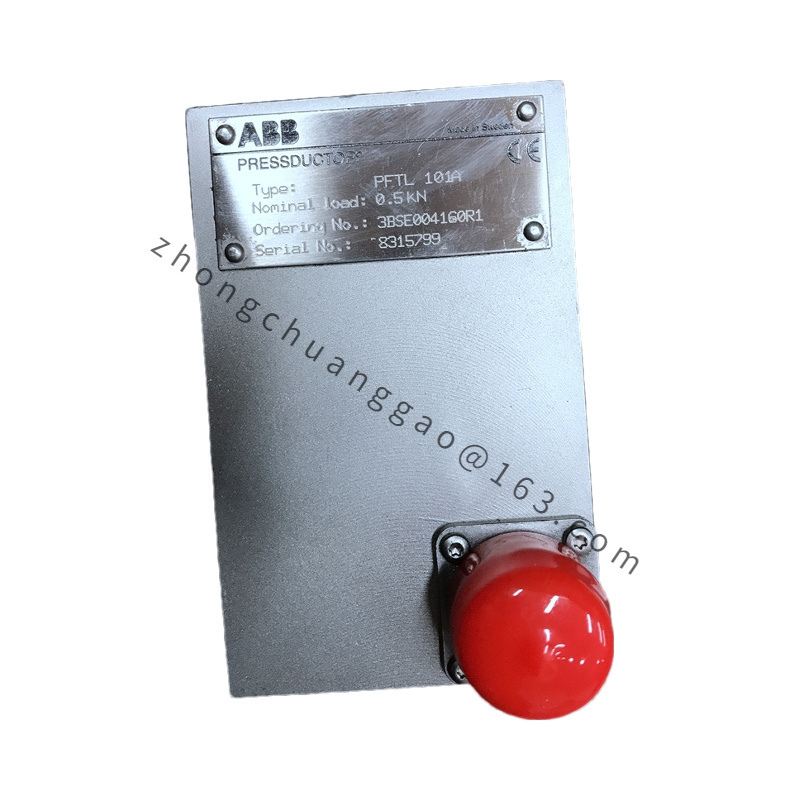

Model and Identification: PFTL 101A-0.5kN, 3BSE004160R1
Manufacturer: ABB
Type: Horizontal Pillow Type Tension Meter Head, Standard Model
Measurement Range: 0.5 kN (kilonewtons)
Input Voltage: Compatible with 90-305VAC, typically 110V/220VAC
Output Voltage: Range from 15V to 428V, with specific voltages such as +24V/2A and +310V (for power drive)
Power Ratings: Multiple power options available, including 60W, 80W, 100W, 120W, 150W, 180W, and 200W
Protection Class: While not specified for the standard model, ABB’s mill-type tension sensors offer IP66 protection.
Operating Temperature: High operational temperature up to 70°C
Functional Characteristics
Design: Compact and aesthetically pleasing design with enhanced heat dissipation, ensuring long product life and reliability.
Adjustability: Supports multiple intelligent dimming controls, including built-in potentiometers, 0-10V DC, 10V PWM, and resistance-based dimming.
Drive Modes: Operates in either constant voltage or constant current mode, with adjustable constant current points.
Ease of Installation and Maintenance: Industrial-grade electronics with pluggable screw terminals for easy access and maintenance.
EMC Compliance: Compliant with EMC standards, eliminating the need for additional housing.
Self-Diagnostics: Features a self-diagnostic test system, including sensor testing, for ease of maintenance and monitoring.
Configurable I/O Ports: Offers easily configurable analog/digital input/output ports for flexible system integration.
Application Scenarios
Metal Processing Lines: Specifically designed for metal processing lines, such as annealing, pickling, and galvanizing lines, where wide tension ranges and high operating speeds are required.
Tension Measurement: Measures tension or force on materials like ropes, bands, and cables, providing critical data for monitoring and controlling tension in industrial processes.
Horizontal Tension Measurement: Ideal for horizontal tension measurement in applications like hot rolling mills, where the PFTL 211-CE pressure head can be integrated into the loop arm for measuring strip tension in both directions.
Robust and Accurate: Its solid stainless steel design ensures high sensitivity, accuracy, and durability, making it suitable for demanding industrial environments.
