technical specifications

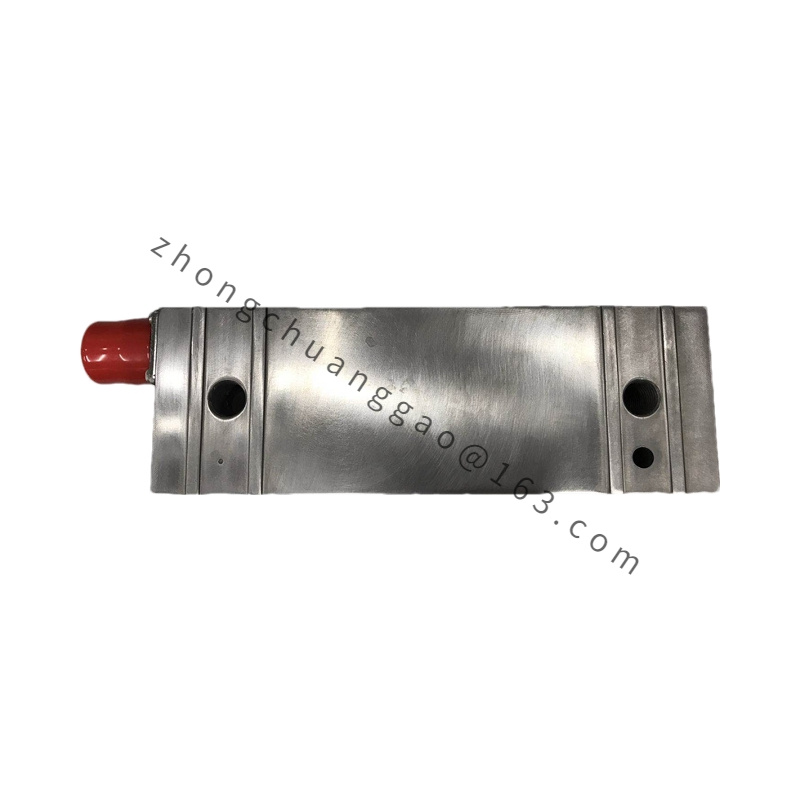

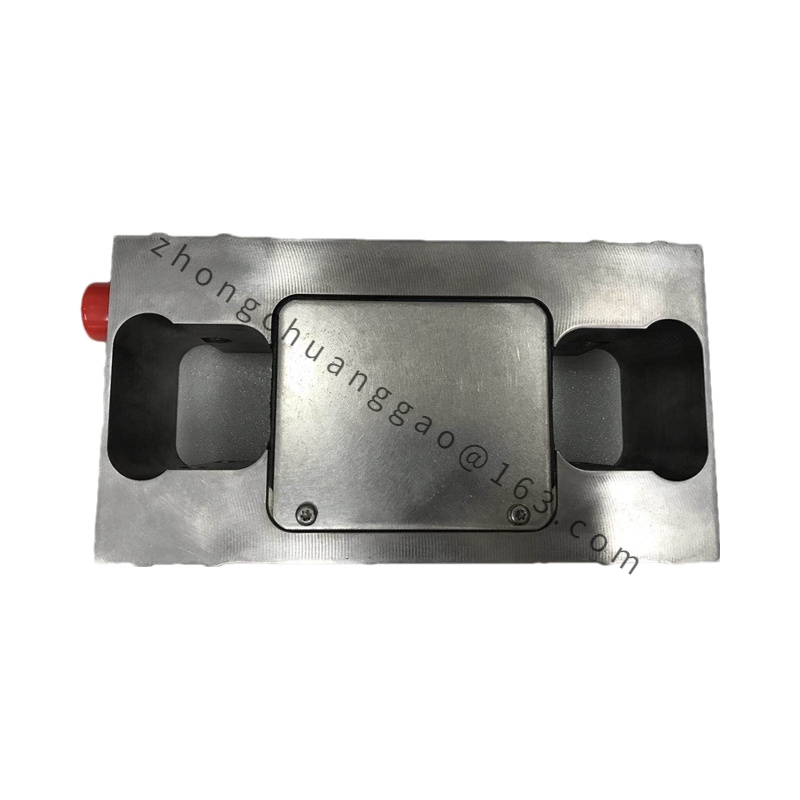

Product type: Piezomagnetic tension sensor
Model: PFTL101A-0.5kN (there may be other range versions available)
Product ID: 3BSE004160R1
Measurement range: Suitable for tension measurement within a certain range, the specific range may vary depending on the model
Working principle: Based on the piezomagnetic effect, when a material is subjected to pressure, its magnetism will change, allowing for the measurement of the force applied to the material
Protection level: The standard PFTL 101A/B may have a higher protection level, but the specific value may vary depending on the model and customization requirements
Power supply voltage: usually 100-240V AC, specific voltage range may vary depending on product version or customized requirements
Working temperature: The operating temperature may reach 70 ° C, suitable for various industrial environments
Resolution: Possessing high resolution to ensure the accuracy of measurement results
Functional characteristics
Easy to install: Designed as an industrial grade electronic device, it is easy to install and use in various industrial environments
Easy to debug: Provides a step-by-step menu for setting control units, allowing users to configure and adjust as needed
Easy to maintain: Equipped with a self diagnostic testing system, including sensor testing, making it convenient for users to troubleshoot and maintain faults
High stability: Sensors may be manufactured using advanced materials and processes to ensure stable performance under high loads and harsh environments
High precision: providing high-precision measurement results to meet the needs of various industrial applications
Application scenarios
Metal processing line: Specially designed for metal processing lines, suitable for application scenarios that require a wide tension range and high operating speed. It can measure the tension or tension on metal strips, cables, and other objects to monitor and control the tension changes in the system.
Printing industry: In the printing process, it is necessary to control the tension of materials such as paper and fabric to ensure printing quality and stability. The PFTL101A sensor can be applied in such scenarios, providing accurate tension measurement and control.
Packaging industry: In the packaging process, it is also necessary to control the tension of materials to ensure the integrity and aesthetics of the packaging. This sensor can be applied in packaging machinery to achieve real-time monitoring and control of tension.
Textile industry: Accurate control of tension of materials such as yarns and fabrics is also required in textile machinery. The PFTL101A sensor can meet this requirement by providing a reliable tension measurement and control solution.
ABB PFTL101A 3BSE004160R1 is a powerful, easy-to-use, and maintainable piezoelectric tension sensor widely used in industrial fields such as metal processing, printing, packaging, and textiles. Its high precision, high stability, and easy configuration make it an ideal choice for industrial tension measurement and control.
