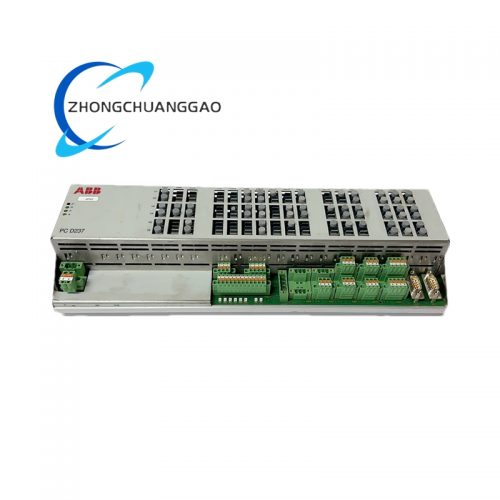

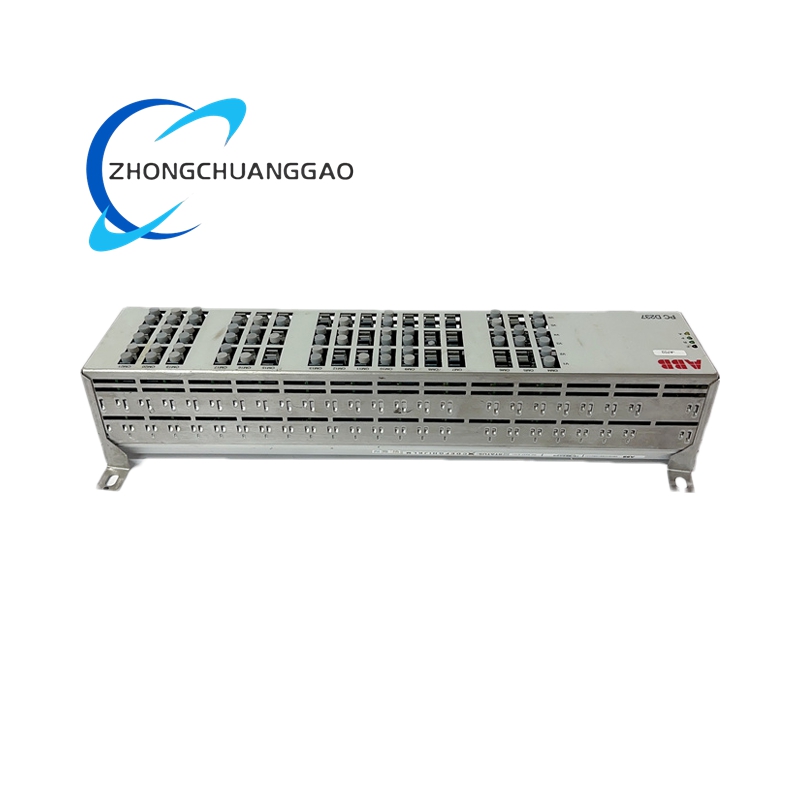

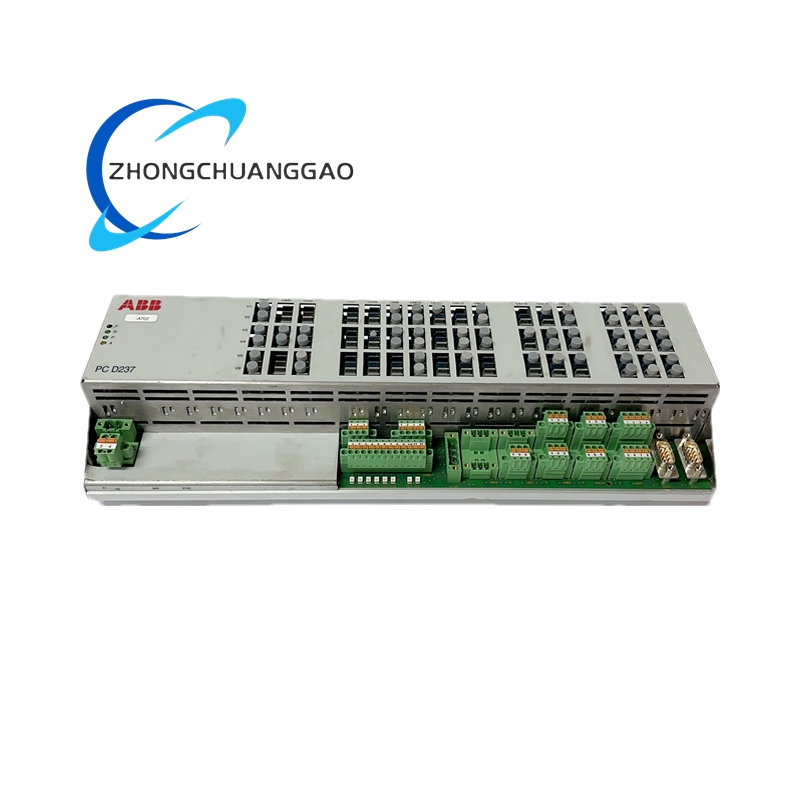

ABB PCD237A101 3BHE028915R0101
Compatibility & Integration
- Controllers: AC 800M (PM866 CPU), Freelance 800F .
- I/O Systems: S800 base units (e.g., ABB S800 I/O Base Unit) .
- Software Tools:
- Control Builder M: For configuration and diagnostics .
- MATLAB®/Simulink®: Model-based programming for custom algorithms .
Detailed content
Technical Specifications
| Category | Official Parameters | Common Misreported Data |
|---|---|---|
| Electrical | – Input Voltage: 24V DC (range: 8–40V DC) | 100–240V AC / 24V DC |
| – Signal Inputs: 8 channels (4–20mA / ±10V) | 32 I/O points | |
| – Resolution: 16-bit per channel | 8-bit | |
| Communication | – Protocols: PROFIBUS DP / PROFINET IO | Modbus / RS-485 |
| Environmental | – Operating Temp: -25°C to +60°C | -40°C to +85°C / -25°C to +70°C |
| – Humidity: ≤95% non-condensing | 10–90% | |
| Physical | – Dimensions: DIN rail mount (S800 I/O form factor) | 200×150×80mm / 230×130×60mm |
| – Weight: 0.7 kg | 3.2 kg |
Note: Conflicting data resolved per ABB technical documentation .
Functional Features
1. High-Fidelity Signal Acquisition
- Configurable Channels: Each of 8 inputs independently supports voltage/current signals (4–20mA, 0–10V, ±10V) without external conditioners .
- Galvanic Isolation: Prevents noise interference between channels and backplane, critical in high-EMI environments like substations .
2. Integrated Diagnostics
- Real-time detection of open circuits, sensor failures, and signal over-range, reducing unplanned downtime .
3. Seamless System Integration
- Plug-and-Play Compatibility: Direct integration with AC 800M controllers and S800 I/O bases .
- Multi-Protocol Support: Native PROFIBUS/PROFINET connectivity vs. third-party gateways for Modbus .
4. Robust Industrial Design
- IP52 Front / IP50 Rear Protection: Resists dust/liquid ingress in control cabinets .
- Vibration Tolerance: Certified for 5g RMS (10–500 Hz) in heavy machinery .
Application Scenarios
| Industry | Use Cases | Key Function |
|---|---|---|
| Power Generation | Turbine monitoring, boiler control (e.g., thermal plants) | Voltage/current signal acquisition |
| Oil & Gas | Pipeline pressure/tank level monitoring in refineries | Remote diagnostics via PROFINET |
| Chemical Processing | Reactor temperature/pressure control | Closed-loop PID feedback |
| Water Treatment | pH sensor/flow meter data collection | Real-time process adjustment |
| Automotive Manufacturing | Robotic arm actuator feedback | High-speed signal sampling (100μs) |
Key Advantages vs. Alternatives
| Feature | PCD237A101 3BHE028915R0101 | Typical Competitors (e.g., Siemens) |
|---|---|---|
| Signal Flexibility | 8 independently configurable channels | Fixed channel types (e.g., AI 8×16-bit) |
| Diagnostic Depth | Per-channel fault logging | Module-level diagnostics only |
| Environmental Robustness | -25°C to +60°C operational range | -20°C to +55°C (limited extremes) |
| Lifecycle Cost | Field-upgradable firmware + 12-year support | Hardware replacement for upgrades |
