Type:Driver Board

Model:NGDR-03C

Series:61298622E

Operating Temperature Range:-25°C to +85°C

Power Consumption:≤15W

Communication Interface:RS-485

Control Protocol Support:Profinet, EtherCAT, CANopen

Number of Channels:4

Amplification Range:±10V

Accuracy:≤0.1%

Dimensions:120mm x 80mm x 25mm

Weight:150g

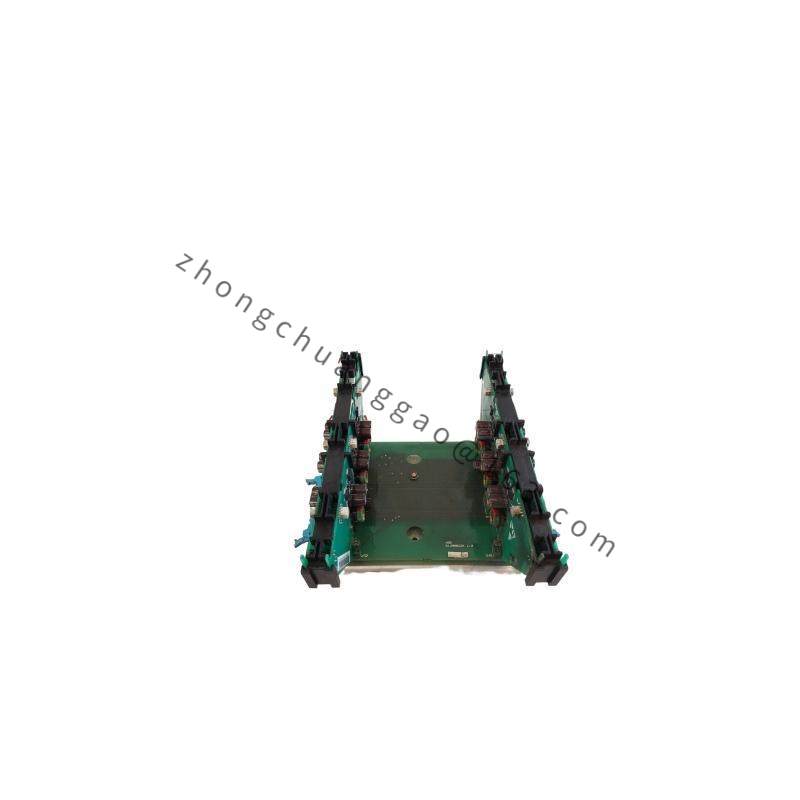

    The ABB NGDR-03C 61298622E driver board is engineered to enhance the efficiency and reliability of industrial automation processes. This advanced driver board is meticulously designed to provide precise control over motors and actuators, ensuring optimal performance across a wide range of industrial applications.

    Featuring an innovative microcontroller architecture, the NGDR-03C ensures high-speed processing and accurate motor control, making it ideal for demanding environments where precision and speed are critical.

    Equipped with robust communication capabilities, including support for EtherCAT and CANopen protocols, this driver board seamlessly integrates with a variety of industrial control systems, facilitating easy setup and operation.

    Designed for durability, the NGDR-03C operates within a broad temperature range (-20°C to +70°C), ensuring reliable performance in extreme conditions. Its compact yet sturdy design optimizes space utilization and compatibility with various industrial setups.

    The driver board supports a wide range of load capacitances (up to 10 μF), making it suitable for diverse applications and ensuring compatibility with a broad spectrum of industrial equipment. Additionally, it is supplied with a versatile power supply input (DC 100-240V AC, 50/60 Hz), ensuring adaptability to different electrical systems.
