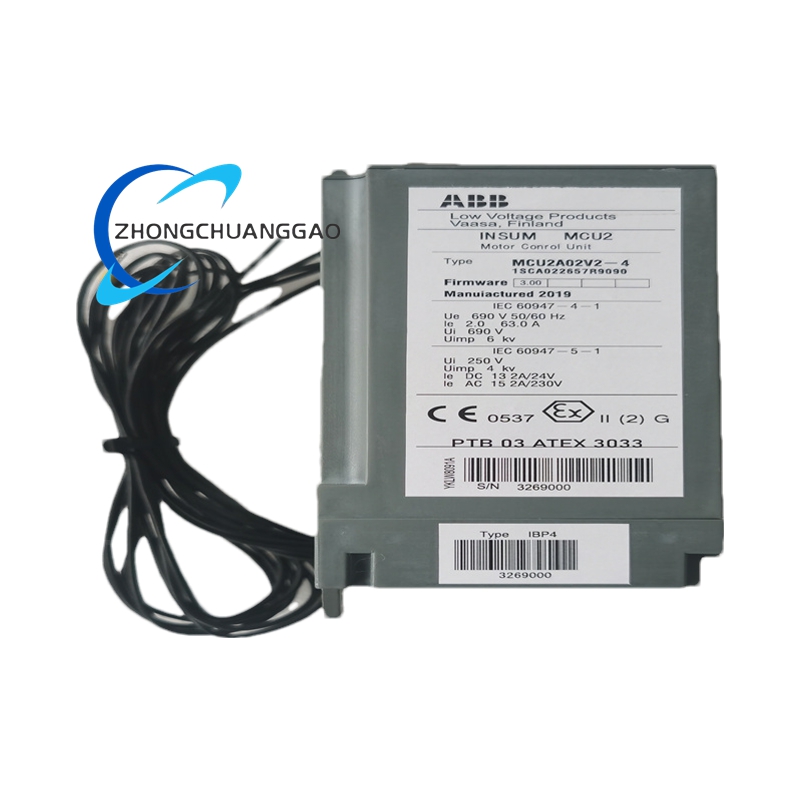

ABB MCU2A02V24 Control Unit
Compatibility & Integration
- Controllers: ABB AC 800M, Symphony Plus DCS, Freelance 800F.
- Third-Party Systems: Siemens SIMATIC, Schneider Modicon (via protocol conversion).
- Motors: ABB MTR series, brushless AC/DC servos.
Certifications & Compliance
- Safety: UL/cUL, CE, IEC 61508 SIL 2.
- Environmental: RoHS, IEC 60068-2 (vibration/shock resistance).
- Cybersecurity: IEC 62443-4-2.
Detailed content
Technical Specifications
| Category | Specifications |
|---|---|
| Processor | ARM Cortex-M0+ core, 48 MHz clock speed |
| Memory | 128 KB RAM + 512 KB Flash storage |
| Digital I/O | 24 channels (configurable as inputs/outputs) |
| Analog I/O | 8 channels (supports 4–20mA, 0–10V, ±10V signals) |
| Communication | RS-232, RS-485, Ethernet, Modbus, Profibus, CANopen |
| Power Supply | 24V DC (±10%), typical consumption <10W |
| Operating Temperature | -40°C to +70°C (industrial-grade resilience) |
| Protection Rating | IP65 (dust/water resistant) |
| Dimensions | 80 mm × 40 mm × 25 mm |
| Weight | 0.2–0.3 kg |
Functional Features
1. Precision Motor Control
- Vector Control Technology: Achieves ±0.1 RPM speed and ±0.1 Nm torque regulation.
- Dual Control Modes: Open-loop and closed-loop configurations.
2. Flexible I/O and Expansion
- Hybrid Signal Handling: Concurrent processing of digital/analog/pulse signals.
- Modular Scalability: Supports +32 channels via ABB S800 I/O modules.
3. Advanced Diagnostics & Safety
- Real-Time Fault Detection: Auto-alerts for overloads, short circuits, and sensor failures.
- Redundant Design: Fail-safe operation for critical processes.
4. Multi-Protocol Integration
- Native Protocol Support: Modbus TCP, PROFIBUS, Ethernet/IP.
- IRIG-B Synchronization: <1 ms timestamp accuracy.
5. Programmable Logic
- Custom Algorithms: PID loops, safety interlocks via ABB Control Builder M software.
Application Scenarios
| Industry | Use Cases | Key Functionality |
|---|---|---|
| Power Generation | Turbine control, grid synchronization | Vector motor control |
| Manufacturing | CNC machinery, robotic assembly | High-speed motion control (250 Hz) |
| Oil & Gas | Pipeline pressure monitoring, valve control | 4–20mA analog acquisition |
| HVAC Systems | Pump/fan speed modulation | PID temperature regulation |
| Renewable Energy | Solar tracker positioning, wind turbine pitch | Redundant control loops |
