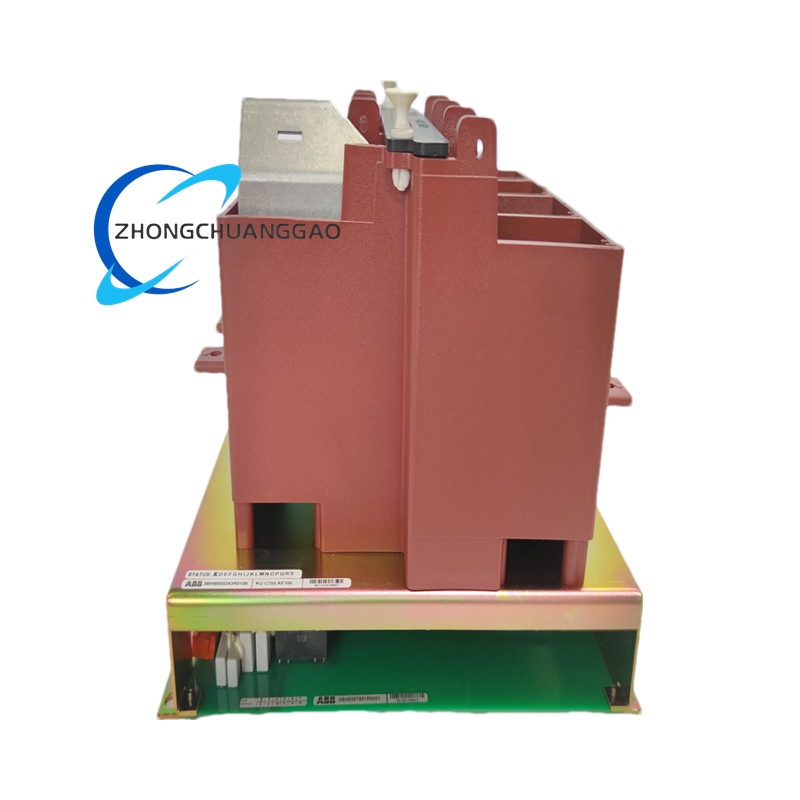

ABB KUC755AE106 3BHB005243R0106 Excitation Controller and Digital Drive Module
Technical Specifications
- Part Number: 3BHB005243R0106
- Model Designation: KUC755AE106
- Function: Control and signal interface unit for integration with ABB drives and automation systems
- Voltage Rating: Designed for use in 24 V DC control circuits
- Current Capacity: Supports standard PLC and relay interfacing loads, typically up to 2 A per output
- Terminal Type: Screw or spring-clamp terminals for reliable wire connection
- Mounting: DIN rail mountable (35 mm standard)
Detailed content
- Operating Temperature Range: -25°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Protection Class: IP20 (for use inside enclosures)
- Humidity Tolerance: 5% to 95% relative humidity, non-condensing
- Material: Flame-retardant polycarbonate housing (UL 94 V-0)
- Approvals: CE, UL, and other international safety and EMC standards
- Compatibility: Designed for integration with ABB AC500, AC31, or similar PLC systems and drive panels
Functional Features
- Signal Conditioning: Provides isolation and buffering for digital input/output signals between control systems and field devices
- Relay Integration: May include built-in electromechanical or solid-state relays for switching control circuits
- Fault Indication: LED indicators for power, signal status, and error conditions to support diagnostics
- Modular Design: Enables easy replacement and system expansion within control cabinets
- Noise Immunity: Galvanic isolation and filtering ensure reliable operation in electrically noisy environments
- Plug-and-Play Installation: Pre-wired or labeled terminals simplify field wiring and reduce commissioning time
- System Integration: Compatible with ABB engineering tools for configuration and documentation support
- Durability: Constructed for long-term operation in industrial settings with resistance to vibration and thermal cycling
Application Scenarios
- Motor Control Centers (MCC): Used as an interface between PLCs and motor starters, contactors, or overload relays
- Pump and Fan Control: Integrated into HVAC, water treatment, and building automation systems for reliable operation
- Conveyor Systems: Provides control logic interfacing in material handling and production lines
- Industrial Automation Panels: Found in OEM machinery and process control cabinets requiring robust signal handling
- Retrofit and Upgrade Projects: Serves as a replacement part for aging control modules in existing ABB installations
- Energy Management Systems: Supports monitoring and control of power-consuming equipment in commercial and industrial facilities
