ABB HS810 3BDH000305R0101

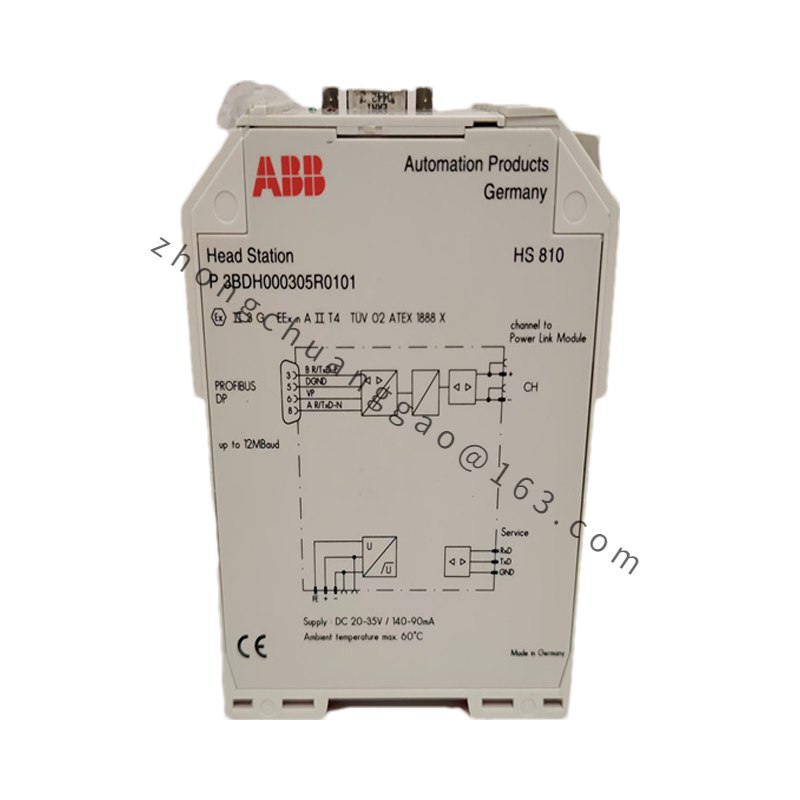

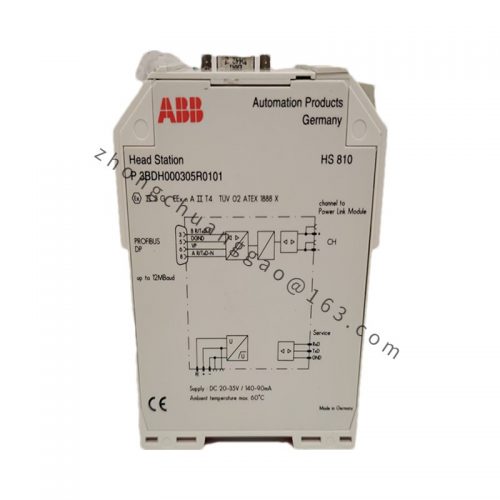

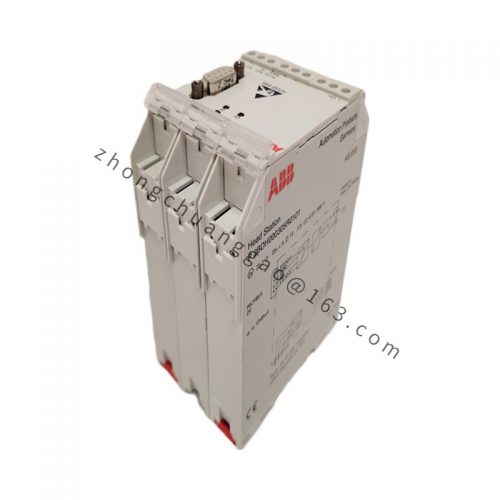

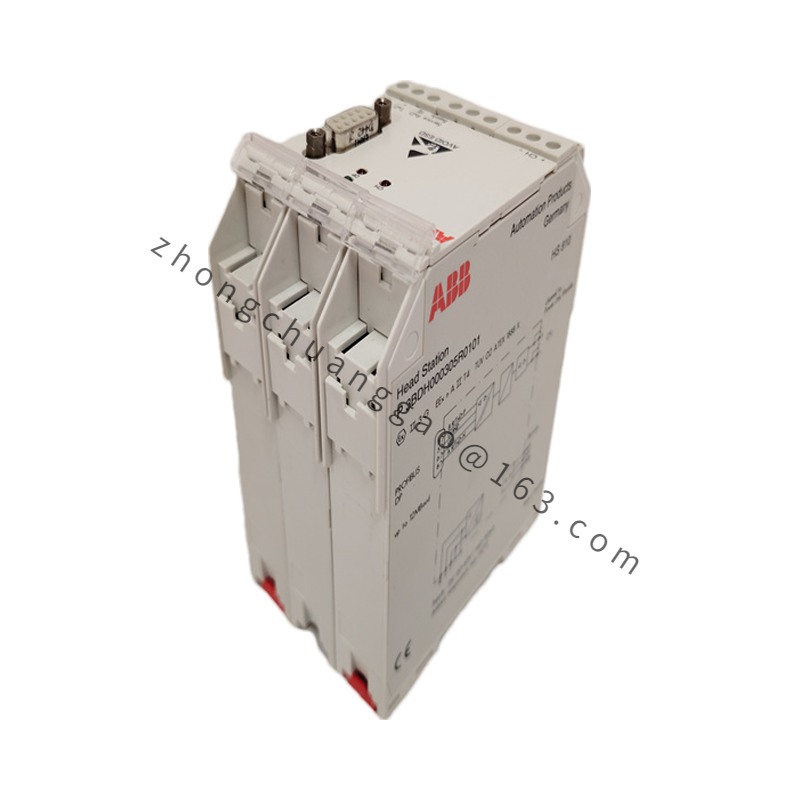

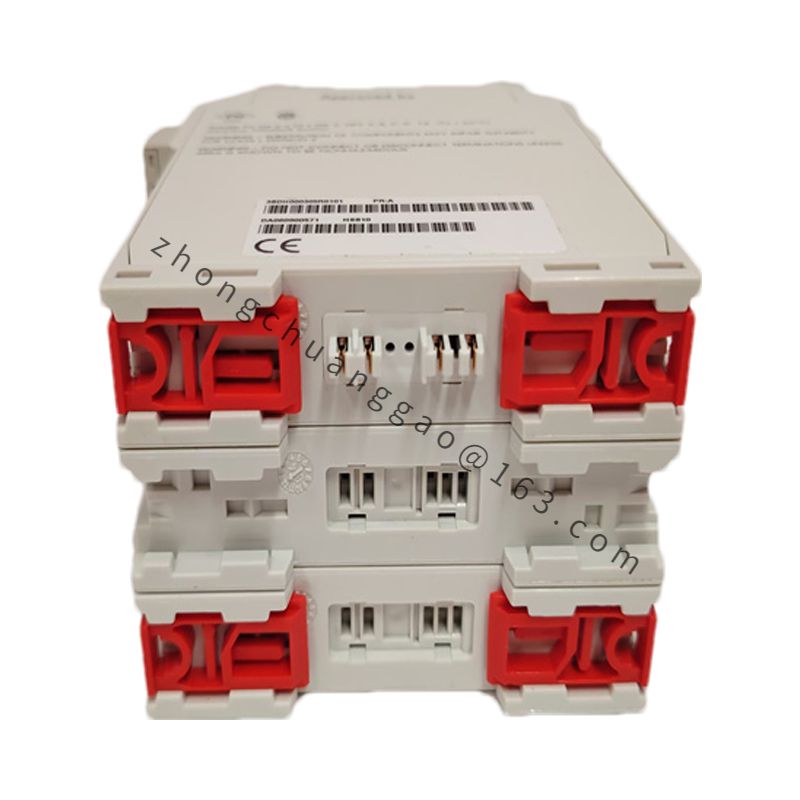

The ABB HS810 (3BDH000305R0101) is a PROFIBUS DP/PA linking device that forms part of the LD 800P series. This device is primarily used to connect PROFIBUS PA segments to a PROFIBUS DP network, supporting data transfer rates from 45.45 kbit/s up to 12 Mbit/s as per the EN 50170/2 standard. The HS810 features a single-channel head station that can be linked with up to five power link modules, facilitating real-time data exchange between field devices and control systems. The device also ensures transparent communication and is designed for use in environments classified up to Zone 2.
Detailed content
Key Features:
- Supports up to 125 PA devices
- Transparent communication without occupying a PROFIBUS address
- Automatic baud rate detection
- No configuration needed
- EMC compliance according to NAMUR NE 21
Applications:
- Industrial automation where integration between PROFIBUS DP and PA segments is required, particularly in hazardous environments.
This linking device is ideal for industries that require reliable and seamless communication between field equipment and central control systems.
