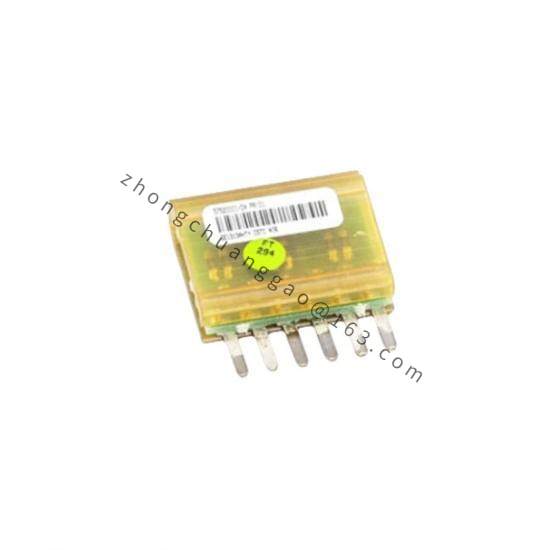

Model Number:DSTC406 57520001-DX/1

Category:Passive Terminating Unit

Brand:ABB

Operating Voltage:24VDC

Termination Impedance:50 Ohms

Operating Temperature Range:-20°C to +70°C

Mounting Style:Panel Mount

Dimensions:L: 80mm x W: 45mm x H: 25mm

Connectivity:RS-485

Environmental Rating:IP20

Certifications:[“CE”,”UL”]

    This Passive Terminating Unit from ABB is specifically engineered for industrial Ethernet networks to ensure reliable signal integrity. It offers exceptional stability at frequencies up to 1 GHz, making it suitable for a wide range of applications in factory automation and process control.

    The unit utilizes robust M12 connectors for secure and durable connections, ensuring long-lasting performance in harsh industrial environments. It is rated for an IP67 environmental rating, allowing it to withstand dust, water ingress, and other adverse conditions typically encountered in manufacturing floors.

    With a termination resistance of precisely 50 Ohms, the DSTC406 57520001-DX/1 guarantees optimal impedance matching, which is crucial for minimizing signal reflections and maximizing data throughput in high-speed networks.

    The compact design and lightweight nature of this unit make it easy to integrate into existing network infrastructure without causing unnecessary strain on cabling or installation processes. Its operating temperature range ensures reliability across different climates, enhancing its versatility in various industrial settings.

    For users seeking high-performance, reliable, and adaptable network termination solutions, the ABB DSTC406 57520001-DX/1 Passive Terminating Unit delivers outstanding value. Its combination of advanced engineering, robust construction, and wide compatibility makes it an ideal choice for enhancing the efficiency and effectiveness of industrial communication systems.
