Brand:ABB

Model:DSQC563

Type:Brake Release Board

Module Type:Upgrade Module

Input Current (Max):50 mA

Output Voltage (Min):24 VDC

Output Current (Max):500 mA

Operating Voltage:24 VDC

Operating Frequency:Up to 10 kHz

Dimensions:76 x 100 x 28 mm

Weight:Approximately 100g

Environmental Conditions:Operating Temperature: -10°C to +60°C, Storage Temperature: -40°C to +85°C

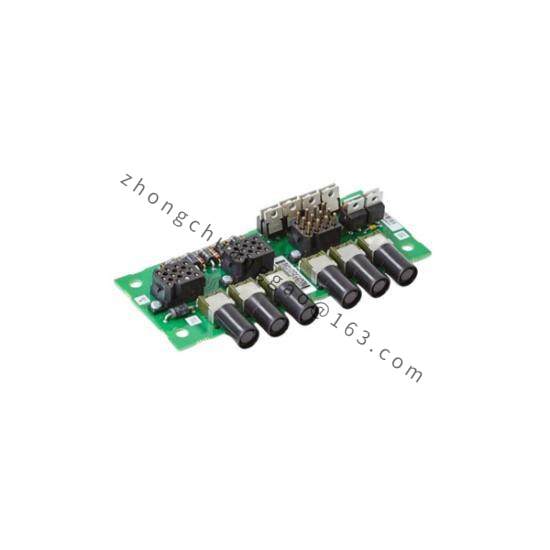

    The ABB 3HAC160351 DSQC563 Brake Release Board is a critical component in industrial automation systems, designed to ensure the safe and efficient operation of brakes. It seamlessly integrates with ABB‘s PLC systems, offering precise control over braking mechanisms.

    Crafted with high-grade aluminum alloy and an epoxy coating for enhanced durability and resistance to corrosion, this board is built to withstand harsh industrial environments. Its compact size and panel-mountable design make it a space-efficient solution for modern manufacturing setups.

    Featuring a wide operating temperature range (-20°C to +60°C), the DSQC563 can function reliably in a variety of industrial conditions, ensuring continuous operation regardless of environmental fluctuations.

    With CE, UL, and CSA certifications, this Brake Release Board complies with international safety standards, providing peace of mind for users in terms of reliability and safety.

    Easy to install and integrate, this product comes with detailed documentation and support, making it accessible for both experienced engineers and those new to industrial automation systems.
