Operating Voltage:24 V DC

Input Range:0 to 20 mA or 0 to 10 V

Serial Communication Protocol:RS-232, RS-485

Data Acquisition Speed:Up to 100 kbps

Number of Channels:4

Power Consumption:Max 2.5 W

Temperature Range:-20°C to +60°C

Certifications:CE, UL, CSA

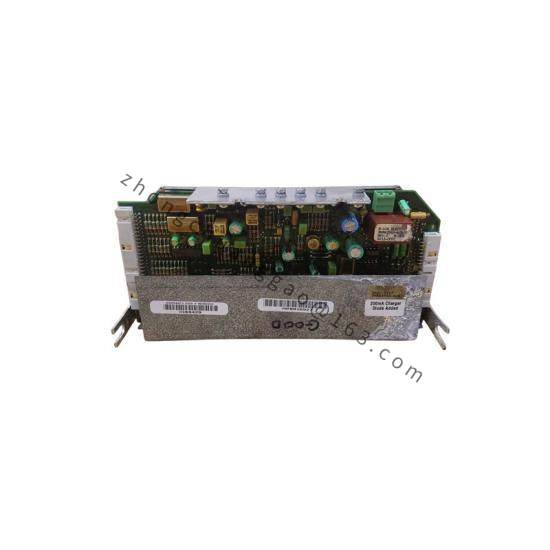

    Introducing the ABB DSQC 245 Serial Measurement Board, an essential component for enhancing the efficiency and reliability of industrial automation systems. This module is engineered to deliver unparalleled performance in serial data acquisition, enabling seamless integration and communication within complex manufacturing environments.

    Featuring a robust design capable of operating within a wide temperature range (-20°C to +60°C), the DSQC 245 ensures stable performance under varying conditions, making it suitable for a broad spectrum of industrial applications. Its support for both RS-232 and RS-485 protocols ensures compatibility with a wide array of devices, fostering versatile and flexible system configurations.

    With four channels available for data acquisition, the DSQC 245 allows for the simultaneous measurement of up to four different signals, significantly boosting productivity and efficiency in data-intensive operations. The module’s high-speed data acquisition capability (up to 100 kbps) ensures real-time monitoring and control, crucial for applications demanding precision and responsiveness.

    Designed with user convenience in mind, the ABB DSQC 245 Serial Measurement Board features a compact footprint that simplifies installation and minimizes space requirements. Its low power consumption (max 2.5 W) contributes to energy-efficient operation, further reducing operational costs without compromising performance.

    Backed by comprehensive certifications including CE, UL, and CSA, the DSQC 245 ensures compliance with international safety and quality standards. This commitment to excellence not only guarantees reliability and durability but also provides peace of mind for users seeking high-quality industrial components.
