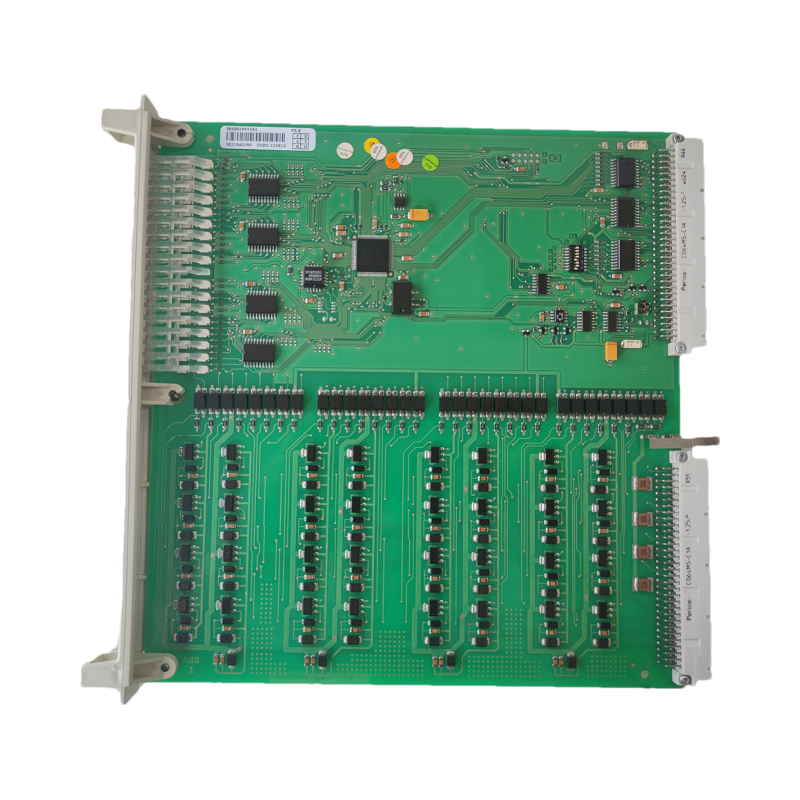

ABB DSDO115K12

Technical Specifications

  • Output Configuration: 32 galvanically isolated digital output channels, each rated for 150mA maximum current at 24V DC ±20%
  • Environmental Ratings: IP40 protection against dust and limited moisture, suitable for harsh industrial settings
  • Operating Temperature: 0°C to +85°C, ensuring resilience in extreme conditions
  • Physical Dimensions: Compact design with dimensions optimized for modular installations (specific measurements not explicitly listed in available data sheets)
  • Power Supply: Requires a separate 24V DC power source for output signals, with low standby power consumption
  • Signal Integrity: High noise immunity and transient protection to maintain reliable operation in electrically noisy environments
WhatApp
WeChat

Detailed content

Functional Features

  • Modular Design: Plug-and-play compatibility with ABB’s distributed control systems (DCS), enabling easy integration and scalability
  • Diagnostic Capabilities: Built-in fault detection for channel-level failures, with LED indicators for real-time status monitoring
  • Overcurrent Protection: Automatic shutdown of individual channels in case of overload, preventing damage to connected devices
  • High Reliability: Constructed with durable relays and electronic components, tested to meet industrial standards for long-term performance
  • Flexible Configuration: Supports custom signal mapping and addressing via software tools, adapting to diverse control requirements

Application Scenarios

  • Industrial Automation: Controls actuators in manufacturing lines, chemical plants, and water treatment facilities, ensuring precise process execution
  • Building Automation: Manages lighting systems, HVAC controls, and access doors in commercial buildings, optimizing energy efficiency
  • Power Generation: Integrates with power plant control systems to monitor and regulate equipment such as circuit breakers and turbines
  • Robotics and Material Handling: Provides reliable signal outputs for robotic arms and conveyor systems in automotive and logistics industries
  • HVAC Systems: Coordinates with sensors and actuators to maintain climate control in large-scale facilities

Compatibility

  • System Integration: Seamlessly interfaces with ABB’s Advant OCS S100 series and other DCS platforms, as well as third-party PLCs and HMIs
  • Expansion Capability: Supports multi-module setups for high-channel-count applications, with standardized communication protocols for unified control
