Technical Specifications
Compatibility: It is compatible with multiple industrial applications such as factory systems, supervisory control and data acquisition (SCADA) systems, medical systems, and transportation equipment. It also offers 32 or 64-bit, 3.3 or 5V PCI or PCI-X compatibility.
Ports and Bus Speed: It provides options for 4 to 32 ports and achieves a 66MHz bus speed through the Control Unity ASIC chip, with a communication speed of up to 921Kbps.
Power Supply and Temperature: It operates on a 24VDC power supply, consumes 5W, and has a working temperature range of -20°C to +60°C, with a storage temperature range of -40°C to +85°C.
Protection Rating: With an IP65 rating, it demonstrates durability and reliability in various environments.
Functional Features
Multiple Communication Functions:
Supports serial communication methods such as RS232, RS422, and RS485, as well as wireless radio, telephone dialing, and telephone polling dialing.
Ethernet communication supports both wired and wireless Ethernet.
All device drivers are compatible with mobile network standards like GPRS, CDMA, and GSM.
Convenient Development System:
Rich components and controls constitute a powerful HMI development system.
Enhanced transition and gradient colors improve screen refresh speed and system efficiency.
Flexible vector sub-images facilitate faster engineering screen creation.
Offers object-oriented programming, built-in indirect, intermediate, and database variables, and supports custom functions and menus.
Openness:
Supports Excel accessing databases via VBA.
Features an open architecture supporting DDE, OPC, ODBC/SQL, ActiveX, DNA standards, and provides external access interfaces through OLE, COM/DCOM, and dynamic link libraries, facilitating deep secondary development with tools like VC++ and VB.
The I/O driver architecture is open, with source code available for interface parts, allowing users to develop new drivers.
Database Functionality:
Built-in real-time database with various functional blocks for data processing and storage, enabling functions such as accumulation, statistics, control, and linearization.
Signal and Protocol Conversion:
Converts control and feedback signals from ACS880 drives to PROFIBUS DP protocol format and vice versa.
Digital Input/Output Module:
Acts as a digital I/O module, belonging to the S800 I/O series, with 16 digital inputs and outputs, 24V DC supply voltage, and an input/output update time of 4 milliseconds.
Application Scenarios

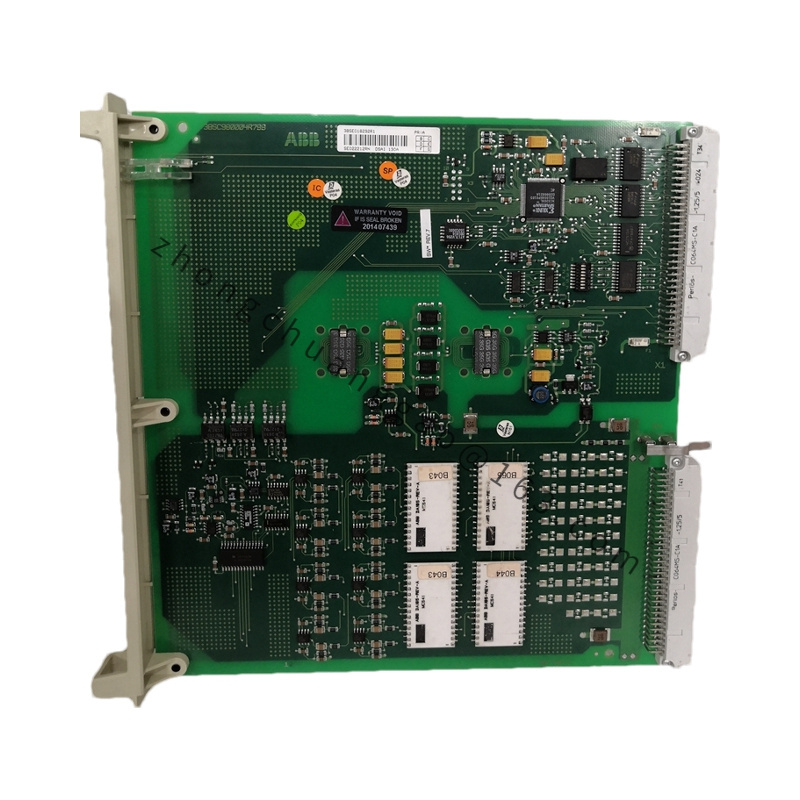

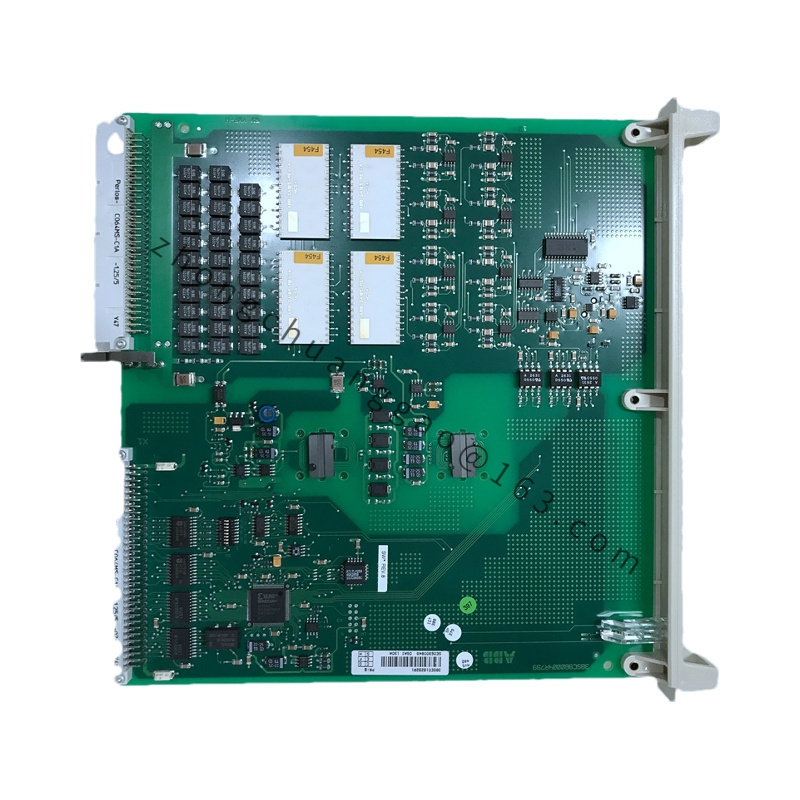

The ABB DSAI130A is widely used in various industrial fields due to its flexibility, high speed, and ease of use. Some specific application scenarios include:
Factory Systems: For automation and control in manufacturing environments.
SCADA Systems: For monitoring and data acquisition in large-scale industrial processes.
Medical Systems: For precision control and monitoring in medical equipment.
Transportation Equipment: For efficient control and communication in transportation systems.
