Technical Specifications

• Communication Protocol:
  Supports PROFIBUS DP-V1 and PROFIBUS PA protocols for integration with field devices, enabling real-time control and monitoring in industrial processes.

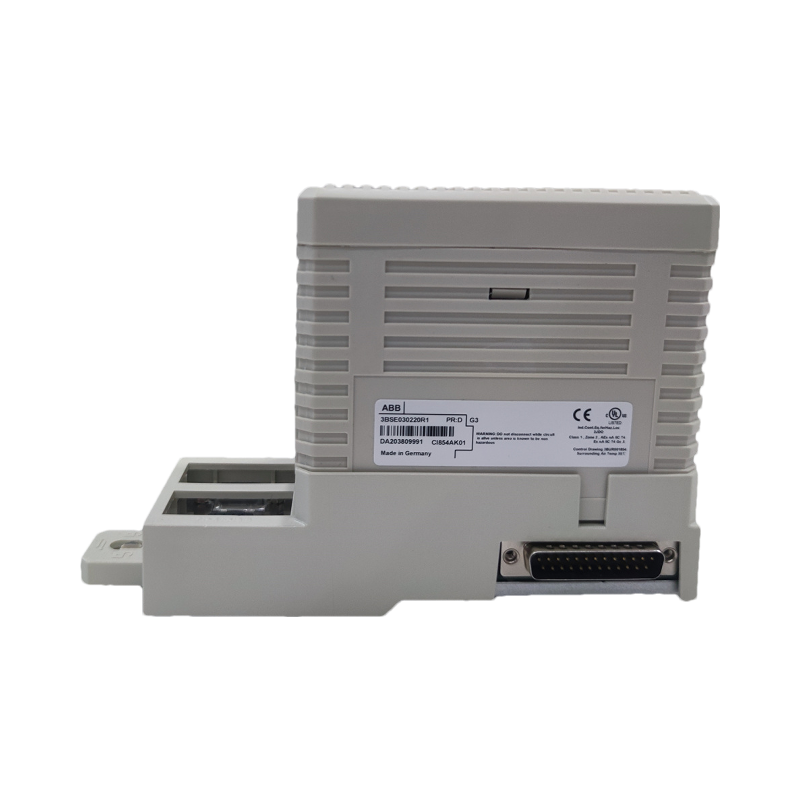

• Physical Design:
  • Dimensions: 185 mm (height) × 59 mm (width) × 127.5 mm (depth)
  • Weight: 0.7 kg (including baseplate)
  • Form factor: Rack-mountable with compact design for space-constrained installations.
• Power Supply:
  Operates on 24V DC (voltage range ±10%) with low power consumption (typ. 190 mA), ensuring stable operation in energy-sensitive environments.
• Environmental Resilience:
  • Operating temperature: +5°C to +55°C
  • Humidity tolerance: 5–95% non-condensing
  • Compliance: CE-certified and marine-compliant (BV, DNV-GL, LR, RS, CCS) for offshore and harsh industrial settings.
• Redundancy:
  Supports line redundancy and master redundancy for fault-tolerant communication, minimizing downtime in critical processes.

Functional Features

1. Dual PROFIBUS Ports:
   • Two independent PROFIBUS DP ports enable redundant communication links, enhancing system reliability.
   • Supports hot standby configuration, where a secondary module automatically takes over control if the primary fails.
2. High-Speed Data Transfer:
   • Data rates up to 12 Mbps for real-time control and monitoring of industrial processes.
   • Low latency ensures rapid response to sensor inputs and actuator commands.
3. Modular Integration:
   • Directly interfaces with ABB’s AC 800M controllers and S800 I/O modules, allowing scalable system expansion.
   • Compatible with third-party PROFIBUS DP/V1 devices, facilitating integration with legacy systems.
4. Diagnostic Capabilities:
   • Built-in LED indicators for power status, communication activity, and fault detection.
   • Integrates with ABB’s Automation Builder software for remote diagnostics and parameter adjustment.
5. Safety Compliance:
   • Designed for SIL2-rated systems (per IEC 61508), making it suitable for safety-critical applications in industries like oil and gas.

Application Scenarios

1. Process Automation:
   • Controls chemical, petrochemical, and pharmaceutical production lines by managing I/O signals from sensors and actuators.
   • Coordinates valves, pumps, and reactors in batch or continuous processes with high precision.
2. Power Generation and Distribution:
   • Monitors and controls turbines, generators, and substations in power plants.
   • Supports redundant communication in smart grid applications to maintain grid stability.
3. Water and Wastewater Treatment:
   • Manages pump stations, filtration systems, and chemical dosing processes with high reliability.
   • Enables remote monitoring of water quality parameters and equipment status.
4. Oil and Gas:
   • Safeguards offshore platforms and refineries by providing fail-safe communication for emergency shutdown systems (ESD).
   • Integrates with SCADA systems for real-time monitoring of wellheads and pipelines.
5. Mining and Metals:
   • Optimizes conveyor systems, crushers, and smelters by ensuring robust communication between PLCs and field devices.
6. Food and Beverage Processing:
   • Ensures hygienic control in bottling, packaging, and pasteurization processes through reliable I/O synchronization.

Integration and Compatibility

• System Integration:
  Seamlessly integrates with ABB’s Ability™ System 800xA® and AC 800M PLCs, as well as third-party DCS/PLC systems via PROFIBUS DP/V1.
• Software Tools:
  Configurable via ABB’s Automation Builder for parameter setup, diagnostics, and firmware updates.
• Redundancy Kits:
  Works with PROFIBUS DP-V1 communication sets to create fully redundant control loops.

Environmental and Safety Considerations

• Sustainability:
  RoHS-compliant design aligns with ABB’s commitment to reducing environmental impact.
• Reliability:
  Rugged construction withstands mechanical vibration and electromagnetic interference (EMI) common in industrial settings.
• Safety:
  SIL2 compliance ensures suitability for applications where system failure could lead to significant consequences.
