Module Type:Analog Output

Model:AO523

Brand:ABB

Input Range:0…20mA

Output Range:0…20mA

Power Consumption:Less than 1W

Operating Temperature:-20°C to +70°C

Communication Interface:Modbus RTU

Protocol Compatibility:IEC 61131-3

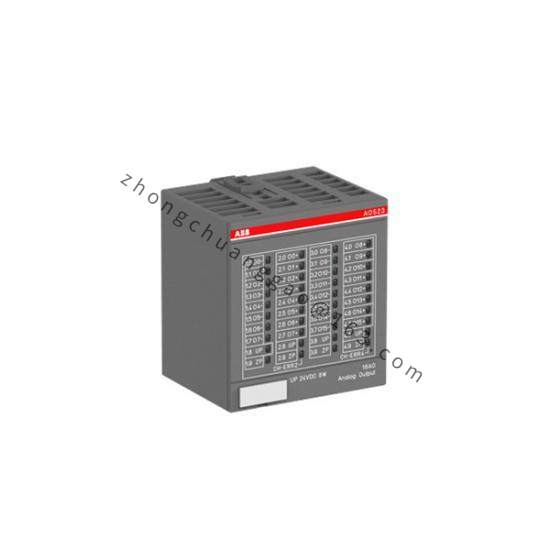

    The ABB AO523 Analog Output Module is an essential component in a wide range of industrial automation systems, providing reliable and stable output signals for process control applications. It features a compact design with an IP20 enclosure type, making it suitable for various industrial environments.

    This module supports a versatile operating voltage range from 10 to 30V DC, ensuring compatibility with a broad spectrum of power sources. Its 0 to 20 mA output current capability allows for precise control over actuators and sensors, enhancing operational efficiency and accuracy.

    Equipped with advanced signal processing technology, the AO523 ensures exceptional accuracy within ±0.1% of the full scale, significantly reducing measurement errors and improving system reliability. The quick response time of less than 10 milliseconds guarantees minimal delay in signal transmission, optimizing the performance of your automation systems.

    Designed for robustness and durability, the ABB AO523 operates within a temperature range of -25°C to +60°C, while its storage capacity extends from -40°C to +85°C, making it suitable for harsh industrial conditions. Its panel mounting type facilitates easy integration into existing control panels.

    With dimensions of 120mm x 84mm x 114mm and a weight of 0.4 kg, the AO523 offers a lightweight and space-efficient solution for modern industrial setups. Its comprehensive set of specifications ensures seamless integration into various control systems, backed by ABB‘s reputation for quality and reliability.
