Operating Voltage:DC 24V

Current Consumption:Less than 100mA

Communication Protocol:Modbus RTU

Temperature Range:-20°C to +55°C

Relay Output Capacity:2 channels, 24VDC, 1A per channel

Signal Input Types:Analog, Digital

Number of Inputs:16

Number of Outputs:8

Dimensions:105mm x 105mm

Mounting Type:Panel mount

Power Supply:Internal power supply

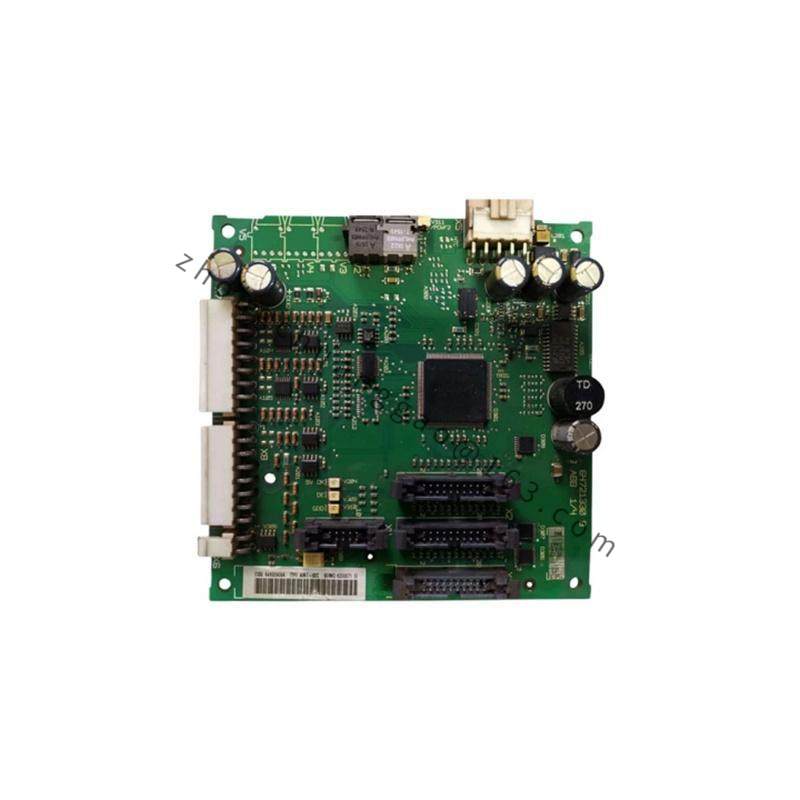

    The ABB AINT-02C 64721330B Interface Board is an essential component for modern industrial automation systems, offering a robust solution for data communication and control. Its advanced microcontroller ensures high-speed, efficient data processing, making it suitable for demanding applications where reliability and performance are critical.

    Equipped with an RS-485 interface, this board supports bi-directional data exchange between devices, facilitating complex network configurations in industrial environments. The high data transfer rate of 19,200 bits per second ensures smooth operation even under high traffic conditions.

    With a substantial 64KB memory capacity, the AINT-02C can handle large datasets and complex control algorithms without compromise. This feature is particularly beneficial for applications requiring extensive memory resources, such as predictive maintenance or advanced control strategies.

    Designed for durability, the board operates within a wide temperature range of -20°C to +70°C, ensuring stable performance in various environmental conditions. Additionally, its humidity tolerance from 5% to 95% RH non-condensing ensures reliability in humid environments, minimizing the risk of malfunction due to moisture.

    Installation and integration are streamlined with standard connector compatibility, allowing for quick setup and minimal downtime during maintenance or upgrades. The compact size of 120mm x 76mm x 35mm makes it suitable for space-constrained areas in industrial setups, enhancing system efficiency.
