Model Number:64530267D

Module Type:Inverter Trigger Board

Compatibility:ABB Inverters

Operating Voltage Range:AC 220V – 440V

Operating Frequency:50/60Hz

Input Current:≤ 2A

Output Signal:RS-485 communication interface

Operating Temperature:-20°C to +50°C

Storage Temperature:-40°C to +70°C

Environmental Compliance:RoHS compliant

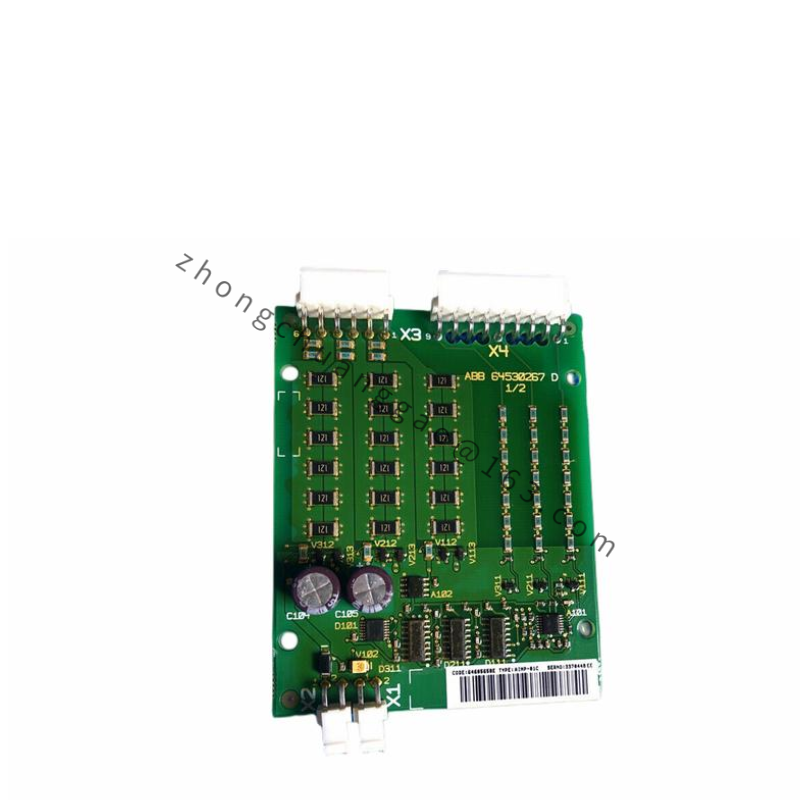

    This ABB AINP-01C Inverter Trigger Board is a key component in industrial automation, offering unparalleled precision and reliability for controlling variable frequency drives. Its advanced design ensures seamless integration with ABB‘s ACS series drives, optimizing performance and efficiency in a wide range of applications.

    With a robust voltage range from 200V to 690V AC, this trigger board caters to diverse industrial environments, from small machinery to large-scale manufacturing processes. Its high current output capability supports applications requiring substantial power management.

    Featuring an operating temperature range of -20°C to +70°C, the board is engineered to withstand harsh industrial conditions, ensuring consistent performance even under extreme environmental pressures. The IP20 protection class provides adequate defense against dust and splashes, safeguarding internal components.

    The AINP-01C is designed for panel mounting, facilitating easy installation and maintenance. This modular design allows for quick setup and hassle-free integration into existing systems, minimizing downtime and enhancing operational efficiency.

    Compliance with international safety standards such as UL and CE guarantees the board’s safety and reliability, ensuring it meets stringent quality benchmarks. ABB‘s commitment to innovation and reliability makes this trigger board an indispensable choice for professionals seeking high-performance solutions in their industrial automation projects.
