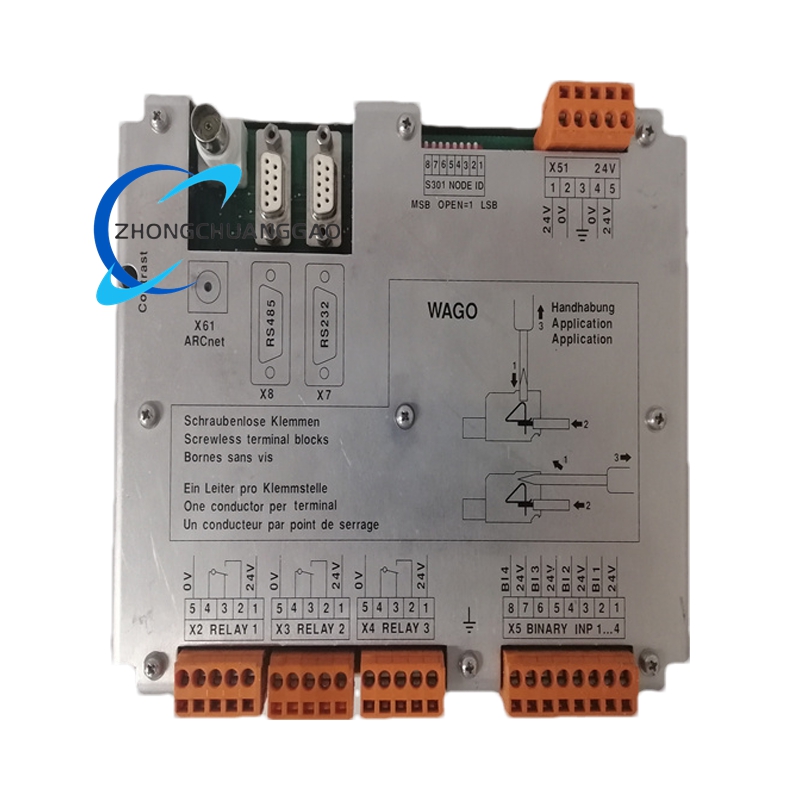

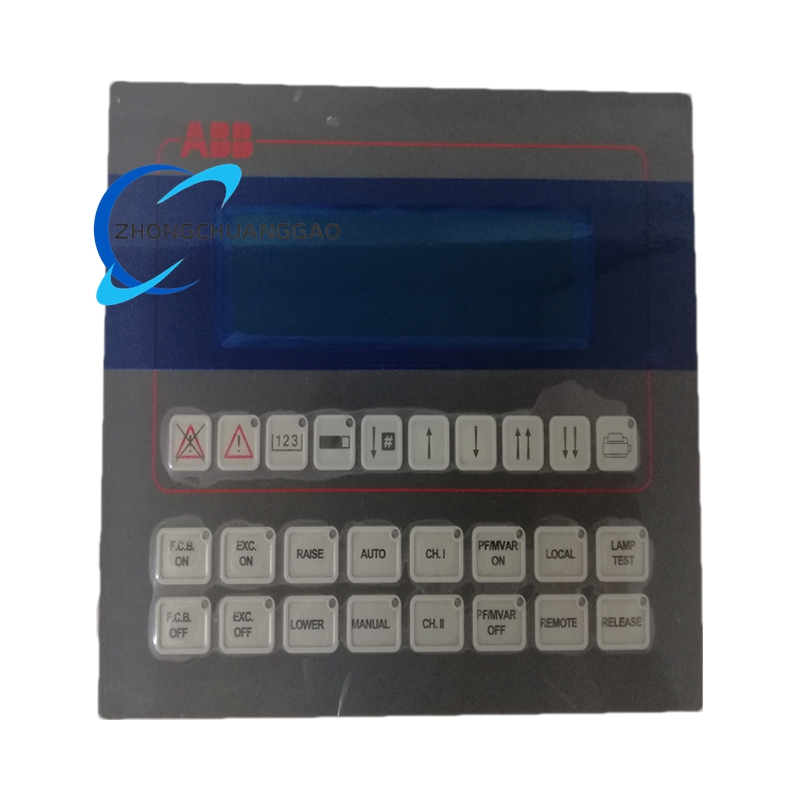

ABB AFC094AE02 HIEE200130R0002 Industrial Programmable Controller Module
Category: Component for Variable Frequency Drives (VFDs) or HVAC Control Systems
Technical Specifications
- Input Voltage: Designed to operate with standard industrial voltages, such as 380V to 480V AC, three-phase
- Output Power: Specific power rating varies depending on the exact application and configuration
- Frequency Range: Typically ranges from 0 Hz to 400 Hz, optimized for controlling the speed of electric motors
- Efficiency: High efficiency, often exceeding 95%, contributing to energy savings
- Communication Protocols: Supports various industrial communication protocols like Modbus, BACnet, and others for integration with building management systems
- Environmental Operating Conditions: Suitable for operation in temperatures ranging from -10°C to +50°C, with options for wider temperature ranges available
- Dimensions and Weight: Compact design suitable for installation in confined spaces, exact dimensions depend on the specific product variant
Detailed content
Functional Features
- Energy Savings: Utilizes advanced algorithms to optimize motor performance and reduce energy consumption
- Easy Installation: Plug-and-play design simplifies setup and reduces installation time
- User-Friendly Interface: Equipped with an intuitive interface for easy configuration and monitoring
- Integrated Safety Functions: Includes safety features such as Safe Torque Off (STO) for enhanced operator protection
- Flexible Control Options: Offers multiple control modes including V/f control, sensorless vector control, and flux vector control for precise motor control
- Advanced Diagnostics: Provides real-time diagnostics and fault detection to minimize downtime and maintenance costs
- Compatibility: Designed to work seamlessly with a wide range of motors, including asynchronous and permanent magnet motors
Application Scenarios
- HVAC Systems: Used in air handling units, chillers, pumps, and fans for efficient climate control in commercial buildings
- Industrial Automation: Ideal for conveyor systems, material handling, and processing lines where variable speed control is required
- Water and Wastewater Management: Controls pumps and blowers for optimal water treatment processes
- Food and Beverage Industry: Ensures precise control over cooling, heating, and ventilation processes in production facilities
- Renewable Energy: Applied in wind turbine pitch control and solar tracking systems to maximize energy capture
