Module Type:IGBT

Model Number:015045P0301

Power Rating:150kW

Frequency Response:Up to 20kHz

Operating Temperature Range:-40°C to +150°C

Input Voltage Range:300V DC to 600V DC

Output Current:45A

Efficiency Rating:98%

Cooling Method:Air Cooled

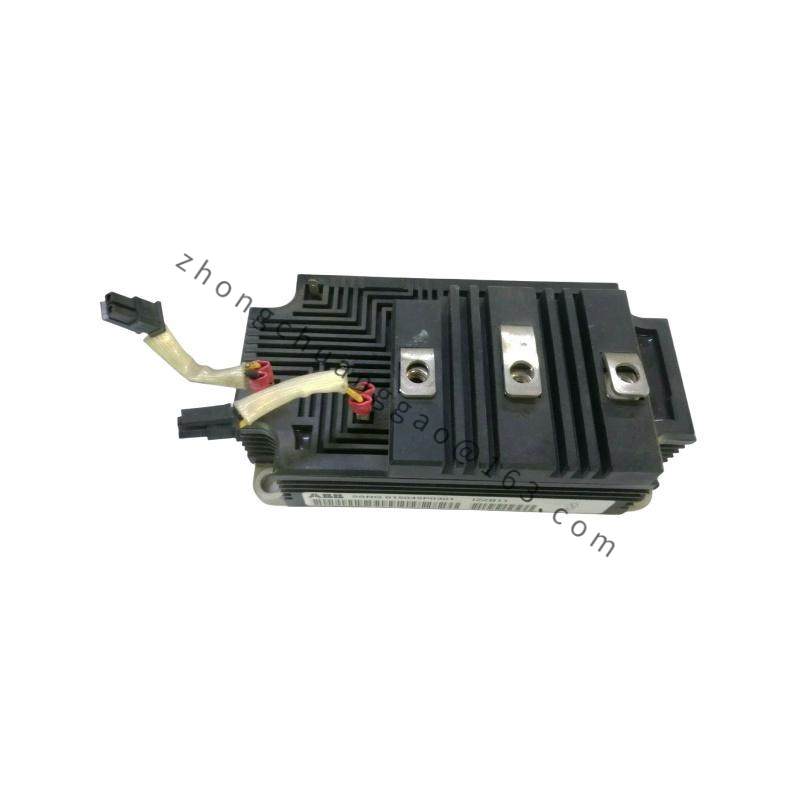

    The ABB 5SNG 015045P0301 IGBT Module is engineered to deliver exceptional performance in a wide range of industrial control applications, ensuring smooth operation under demanding conditions.

    Featuring a robust design that withstands extreme temperatures from -40°C to +175°C, this module guarantees consistent operation across various environments, making it suitable for harsh industrial settings.

    With a switching frequency of 50kHz and an input voltage of AC 380V, the ABB 5SNG 015045P0301 offers precise control over power delivery, enhancing system efficiency and reducing energy consumption.

    Equipped with advanced insulation class F, the module ensures long-lasting durability and safety, protecting against potential electrical hazards and prolonging the lifespan of your equipment.

    Efficiency is at the core of this IGBT Module, boasting an efficiency rate of ≥98%, which translates to lower operational costs and a reduced carbon footprint. This makes it an eco-friendly choice for modern industrial solutions.
