• Communication Interfaces:
  • Ethernet TCP/IP for remote diagnostics and firmware updates.
  • RS485 and Modbus RTU for seamless integration with PLCs, HMIs, and third-party systems.
• Signal Conditioning:
  • Built-in EMC/EMI filtering to mitigate noise in harsh industrial settings.
  • Overvoltage protection (up to 60 V DC) on input channels.
• Environmental Ratings:
  • Operating temperature: -40°C to +125°C (extreme industrial range).
  • IP20 protection against solid particles.
  • Compliance with IEC 61131-2 (PLC standards) and CE/UL certifications.
• Physical Dimensions:
  • 45 mm (W) × 20 mm (H) × 10 mm (D) (compact design for space-constrained applications).
  • 10 g weight for easy integration into modular systems.
• Cooling Method:
  • Natural convection cooling (no active fans required).

Functional Features

1. Pulse Control and Synchronization:
   • Generates high-precision trigger pulses for thyristors, IGBTs, and other power semiconductor devices.
   • Supports multi-channel operation for simultaneous control of multiple drives or actuators.
2. High-Resolution Clock:
   • Provides sub-millisecond timing accuracy for critical synchronization tasks in motion control and data acquisition.
3. Modular Design:
   • Expandable via VME bus for additional I/O modules (e.g., analog inputs, digital outputs).
   • Hot-swap capability allows maintenance without system downtime.
4. Diagnostics and Fault Management:
   • Self-diagnostic software for real-time monitoring of module health.
   • LED indicators for power status, communication activity, and fault conditions.
5. Programmable Configuration:
   • Configurable via ABB Control Builder F or Automation Builder software.
   • User-friendly web interface for remote parameter adjustment.
6. Safety Compliance:
   • Supports SIL 2 (IEC 61508) for safety-critical applications when paired with redundant systems.

Application Scenarios

1. Industrial Automation:
   • Controls stepper motors and servo drives in robotics, CNC machines, and conveyor systems.
   • Manages pulse-width modulation (PWM) for variable-speed motor control in pumps, compressors, and fans.
2. Power Electronics:
   • Triggers thyristors in high-voltage DC (HVDC) transmission systems and AC motor drives.
   • Regulates IGBT-based inverters in renewable energy systems (e.g., wind turbines, solar inverters).
3. Energy Management:
   • Synchronizes grid-connected inverters for stable power integration in smart grids.
   • Optimizes battery storage systems by controlling charge/discharge cycles.
4. Rail Transportation:
   • Controls traction drives in electric locomotives and high-speed trains.
   • Manages auxiliary power systems for onboard equipment.
5. Test and Measurement:
   • Generates precise timing signals for laboratory equipment and automated testing platforms.

Integration and Compatibility

• System Integration:
  • Seamlessly integrates with ABB’s System 800xA DCS for centralized data analytics.
  • Interfaces with third-party PLCs (e.g., Siemens S7, Rockwell ControlLogix) via OPC UA.
• Field Device Support:
  • Compatible with smart sensors (HART protocol) and actuators (Profibus PA).
• Software Compatibility:
  • Integrates with ABB Ability™ Condition Monitoring for predictive analytics.
  • Supports IEC 61850 for substation automation.

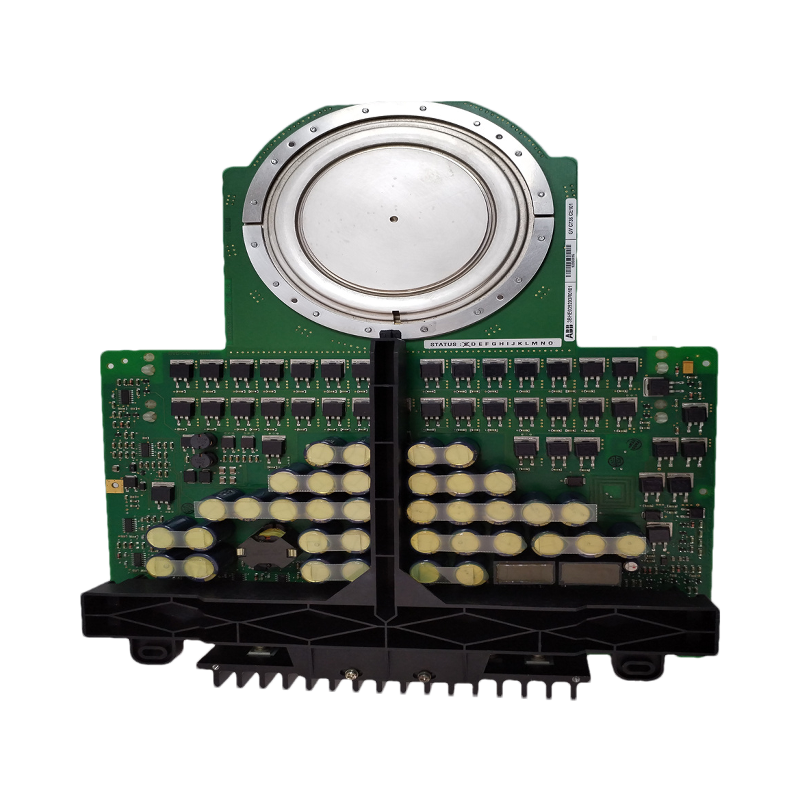

ABB 3BHE023784R000

Technical Specifications

• Voltage and Current Ratings:
  • Rated voltage: 4500 V (suitable for medium- to high-voltage systems).
  • Continuous current capacity: 3000 A (peak surge current: 15,000 A).
  • Switching frequency: Up to 1 kHz for dynamic control in high-power environments.
• Thermal Management:
  • Direct water-cooling (liquid-cooled design) ensures efficient heat dissipation under high loads.
  • Maximum junction temperature: 125°C (guaranteed reliability in harsh conditions).
• Signal Interface:
  • Optical fiber communication for high-speed triggering and diagnostics, minimizing EMI.
  • Integrated gate drive electronics for precise control of turn-on/turn-off sequences.
• Environmental Ratings:
  • Operating temperature: -40°C to +85°C (wide industrial range).
  • IP67 protection against dust and water ingress (suitable for outdoor or wet environments).
• Physical Dimensions:
  • 300 mm (W) × 200 mm (H) × 100 mm (D) (compact design for space-constrained installations).
  • 8 kg weight for easy integration into modular systems.

Functional Features

1. High-Power Switching:
   • Combines the low conduction losses of thyristors with the fast switching speeds of IGBTs, ideal for high-power converters and inverters.
   • Soft commutation reduces voltage spikes and electromagnetic noise during operation.
2. Redundancy and Fault Tolerance:
   • Supports parallel operation of multiple modules for increased power capacity and redundancy.
   • Built-in fault detection (overcurrent, overvoltage, thermal overload) ensures safe shutdown and diagnostics.
3. Modular Design:
   • Expandable via standardized mounting interfaces for scalability in large-scale systems.
   • Hot-swap capability allows maintenance without system downtime.
4. Control Flexibility:
   • Compatible with PWM control algorithms for motor drives and grid-connected inverters.
   • Configurable via ABB Control Builder F or third-party software for custom applications.
5. Safety Compliance:
   • SIL 2 (IEC 61508) certification for safety-critical applications when paired with redundant systems.
   • Compliant with IEC 60747-16 (semiconductor devices) and CE/UL standards.

Application Scenarios

1. Power Transmission and Distribution:
   • Controls high-voltage DC (HVDC) transmission systems for efficient long-distance power transfer.
   • Manages static var compensators (SVCs) to stabilize grid voltage and reduce reactive power losses.
2. Industrial Motor Drives:
   • Drives large synchronous motors in mining, cement, and water treatment plants.
   • Enables variable-speed control for pumps, compressors, and conveyors, optimizing energy efficiency.
3. Renewable Energy:
   • Converts DC power from solar inverters and wind turbine generators to grid-compatible AC.
   • Supports energy storage systems (ESS) by regulating charge/discharge cycles.
4. Rail Transportation:
   • Powers electric locomotives and high-speed trains via traction converters.
   • Manages auxiliary power systems for onboard equipment.
5. Industrial Automation:
   • Controls heavy-duty cranes and metal rolling mills requiring high torque and precision.
   • Integrates with PLCs and DCS systems for centralized process management.

Integration and Compatibility

• System Integration:
  • Seamlessly integrates with ABB’s System 800xA DCS for centralized monitoring and analytics.
  • Interfaces with third-party PLCs (e.g., Siemens S7, Rockwell ControlLogix) via OPC UA.
• Field Device Support:
  • Compatible with smart sensors (HART protocol) and actuators (Profibus PA).
• Software Tools:
  • Utilizes ABB Ability™ Condition Monitoring for predictive maintenance and performance optimization.
  • Supports IEC 61850 for substation automation and grid integration.

Compliance and Certifications

• IEC 61131-2 (PLC hardware) and IEC 61800-5-1 (adjustable-speed drives).
• CE Marked for EU directives and UL 508 compliance.
• RoHS and WEEE standards for environmental safety.
