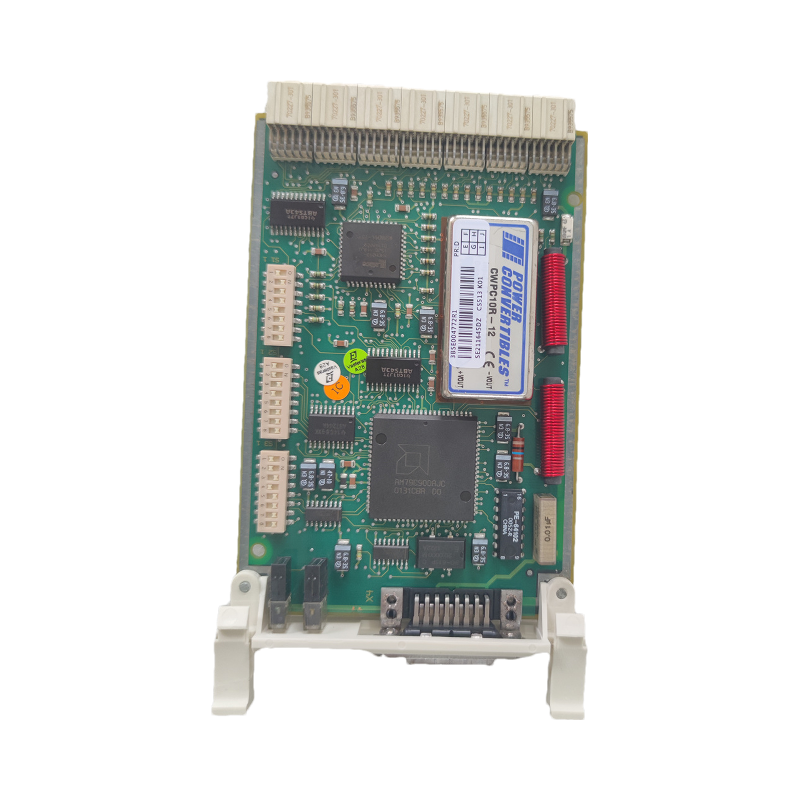

ABB 3BSE004772R1

Technical Specifications

  • Input Voltage: 24 V DC ±20%
  • Power Consumption: Low (<5 W typical)
  • Communication Protocols: Supports Modbus RTU, ASCII, Profibus, and MasterBus 300/300E protocols.
  • Data Transfer Rate: 10/100 Mbps Ethernet connectivity.
  • Operating Temperature: -25°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Dimensions: 90 mm (W) × 30 mm (H) × 105 mm (D)
  • Weight: Approximately 200 grams
  • Protection Rating: IP20 (dust and limited moisture protection)
  • Interface Types: RJ45 Ethernet, USB for configuration
  • Processor: High-performance CPU for complex control tasks
  • Memory: Sufficient RAM for real-time data processing and protocol handling
  • Response Time: Less than 1 ms for critical operations.
WhatApp
WeChat

Detailed content

Functional Features

  1. Multi-Protocol Support: Enables interoperability with diverse industrial devices and systems, including PLCs, HMIs, and SCADA systems.
  2. Redundancy Capability: Ensures continuous operation by supporting redundant communication paths, enhancing system reliability.
  3. Remote Diagnostics: Allows remote monitoring and troubleshooting via built-in diagnostic tools, reducing downtime.
  4. Modular Design: Easy installation and maintenance with plug-and-play functionality, compatible with ABB’s distributed control systems (DCS).
  5. High Reliability: Built for industrial environments with robust construction, EMI/RFI protection, and wide temperature tolerance.
  6. Flexible Configuration: Configurable via software tools to adapt to specific application requirements, including protocol settings and data mapping.
  7. Real-Time Performance: Supports fast data processing and synchronization for time-sensitive industrial applications.

Application Scenarios

  1. Industrial Automation: Integrates with PLCs and DCS for process control in manufacturing lines, power plants, and water treatment facilities.
  2. Robotics Control: Supports real-time communication with robotic systems for precision tasks in automotive assembly or material handling.
  3. HVAC Systems: Manages data exchange between building automation systems and sensors/actuators for energy-efficient climate control.
  4. Petrochemical and Metallurgy: Facilitates data integration in harsh industrial settings, ensuring reliable operation in oil refineries, steel mills, and chemical plants.
  5. Power Generation: Connects distributed control systems in power plants for monitoring and optimizing energy production.
  6. Transportation: Used in mobile applications like ambulances and public transport for real-time data logging and remote monitoring.

Compatibility

  • System Integration: Works seamlessly with ABB’s Advant OCS, AC450, and Safeguard 400 series systems, as well as third-party devices.
  • Expansion Capability: Supports scalable network architectures, allowing incremental system expansion without reconfiguration.
