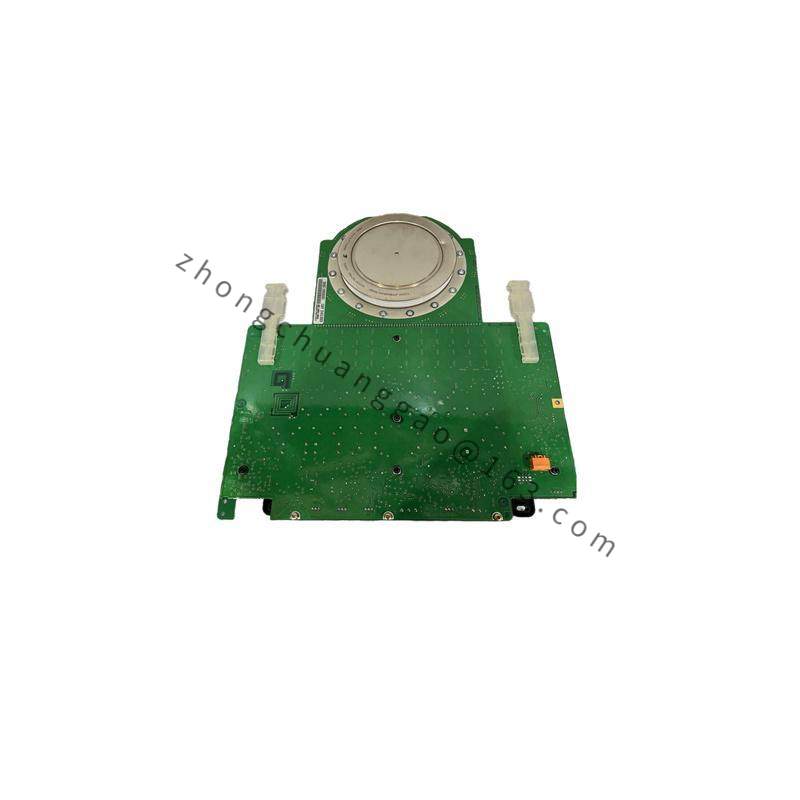

ABB 3BHL000986P3001 – High-Power IGCT Module for Advanced Industrial Automation
The ABB 3BHL000986P3001 IGCT MODULE is a high-performance, state-of-the-art power semiconductor component designed for industrial control systems, offering exceptional reliability and efficiency in high-power applications.
Detailed content
Module Type:IGCT
Model Number:3BHL000986P3001
Manufacturing Origin:Switzerland
Input Current:Up to 2000A
Operating Voltage:Up to 690V AC
Switching Frequency:Up to 50kHz
Temperature Range:-25°C to +60°C
Protection Rating:IP20
Power Handling Capacity:500kW
Communication Interfaces:[“EtherCAT”,”PROFINET”]
Weight:Approx. 10kg
Dimensions:L 460mm x W 180mm x H 120mm
Engineered for high-performance applications, the ABB 3BHL000986P3001 IGCT MODULE offers unparalleled reliability and efficiency in managing large-scale industrial processes.
Featuring advanced IGCT technology, this module ensures precise control over electrical power, making it ideal for industries requiring sophisticated energy management solutions.
With its robust construction and wide operating temperature range, the ABB 3BHL000986P3001 is designed to withstand harsh industrial environments, ensuring continuous operation under varying conditions.
Equipped with multiple communication interfaces, including EtherCAT and PROFINET, the module facilitates seamless integration with a wide array of industrial automation systems, enhancing system flexibility and interoperability.
Ideal for applications such as electric drives, renewable energy systems, and power grid management, the ABB 3BHL000986P3001 IGCT MODULE is a testament to ABB’s commitment to delivering cutting-edge technology that drives industry forward.
