Operating Voltage:12-48V DC

Current Output Range:0-20mA

Power Supply Type:DC

Communication Interface:RS485 Modbus

Temperature Range:-20°C to +70°C

Reliability Rating:IP20 Enclosure Protection

Dimensions (WxHxD):120mm x 100mm x 40mm

Weight:0.15kg

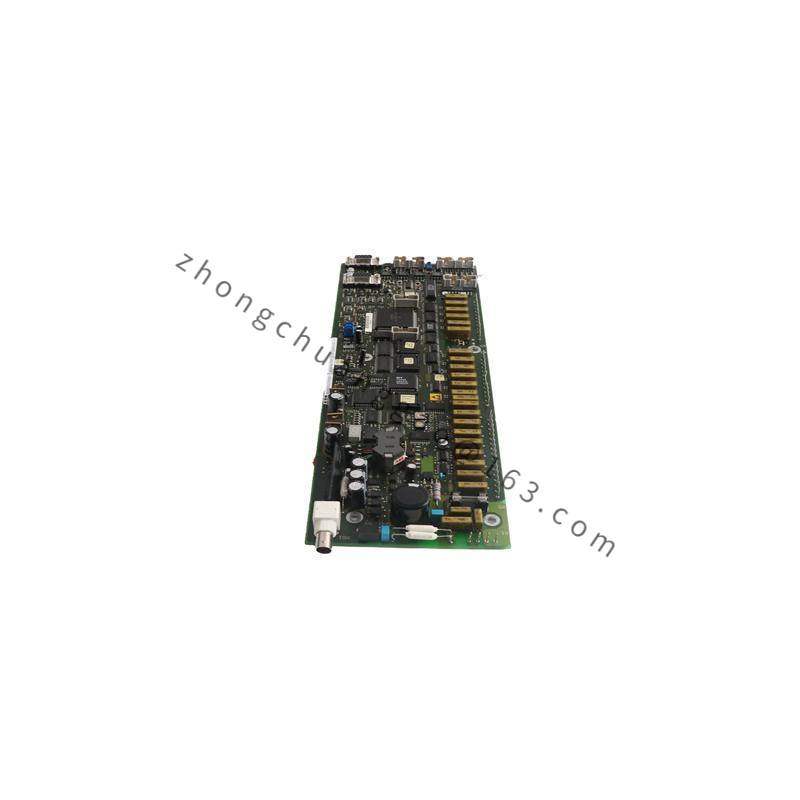

    Precision engineered for seamless integration into ABB‘s comprehensive automation ecosystem, the ABB 3BHL000986P0006 Analog Output Board is a cornerstone for advanced manufacturing control systems. Its robust design ensures reliable operation under harsh industrial conditions, providing unparalleled accuracy and efficiency.

    Featuring a wide operating current range from 0 to 20 mA or 4 to 20 mA, this module offers unparalleled flexibility, allowing for precise control over actuators, valves, and other critical components in your production line. It supports a voltage compatibility range from 12 to 36 VDC, ensuring broad applicability across diverse industrial environments.

    With 16 output channels, the 3BHL000986P0006 is capable of handling multiple control tasks simultaneously, significantly increasing the throughput of your automated systems. Its low power consumption of ≤ 1.5 W per channel makes it energy-efficient, contributing to reduced operational costs and environmental footprint.

    Equipped with a MODBUS RTU communication interface, this module facilitates easy integration with existing control systems, simplifying setup and maintenance. The wide temperature ranges (-20°C to +70°C operational, -40°C to +85°C storage) ensure reliability in extreme conditions, making it suitable for a variety of industrial applications.

    Compact and lightweight, measuring only 100mm x 100mm x 45mm and weighing just 0.1 kg, the ABB 3BHL000986P0006 Analog Output Board is designed for ease of installation and space-saving integration. Its durability and performance make it an indispensable component for enhancing productivity and quality in modern manufacturing operations.
