Brand:ABB

Model Number:1SAP260100R3001

Product Type:PD501-4CH

Module Type:Analog I/O

Channels:4

Signal Types:[“Voltage”,”Current”]

Operating Range:0 to 10 VDC / 4 to 20 mA

Communication Protocol:[“Profinet”,”EtherCAT”]

Power Consumption:Max 2.5 W

Environmental Conditions:Temperature range -25°C to +60°C, Humidity up to 95% non-condensing

Connector Type:MODBUS

Dimensions:W x H x D (mm)

:84 x 105 x 76

Weight:Approx. 0.25 kg

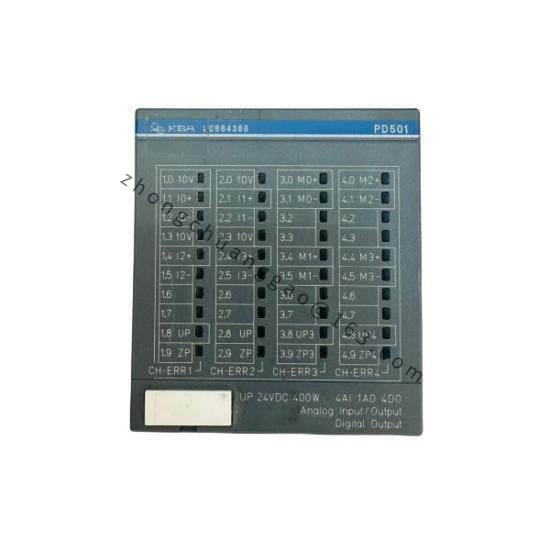

    The ABB PD501-4CH Analog I/O Module is engineered with precision to ensure reliable performance in harsh industrial environments. Its compact design facilitates easy installation and maintenance, allowing for quick deployment without compromising on functionality.

    Featuring four channels, this module offers both input and output capabilities, making it ideal for applications requiring real-time data acquisition and control. The voltage and current ranges are specifically selected to match common industrial standards, ensuring compatibility and minimizing setup time.

    With an operating temperature range of -25°C to +60°C, the PD501-4CH is designed to withstand extreme conditions encountered in manufacturing floors, mines, or any other industrial setting. This robustness is complemented by its power consumption of just 1.5W, ensuring efficient energy use and reducing operational costs.

    The inclusion of a Profinet communication interface allows for seamless integration with ABB‘s extensive range of automation solutions, as well as third-party devices, facilitating a cohesive and scalable system architecture. The terminal block connector type further enhances ease of use, allowing for quick and secure wiring.

    Certified to CE and UL standards, the PD501-4CH Analog I/O Module complies with global safety regulations, providing peace of mind for users across various industries. Whether in a new installation or as an upgrade to existing systems, this module is a reliable choice for enhancing process control and automation capabilities.
