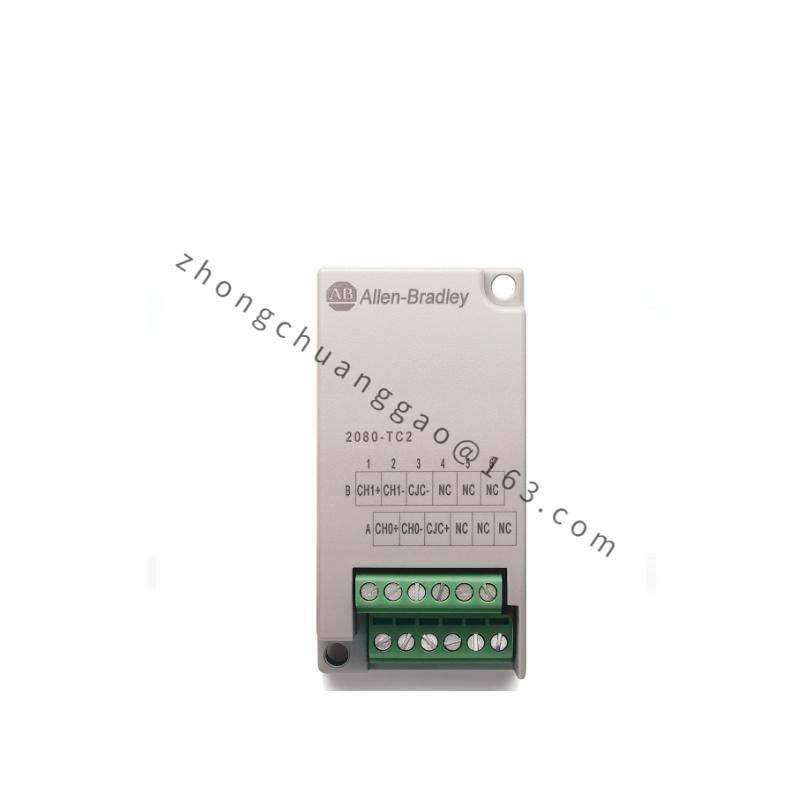

Model:AB 2080-TC2

Module Type:Non-Isolated Thermocouple

Micro 800:Yes

Operating Temperature Range:-40°C to 800°C

Accuracy:+/- 0.5% of Reading + 2°C

Resistance:Less than 1 Ohm

Input Signals:Thermocouple Types: K, J, E, T, R, S, B, N, C, U

Power Consumption:Max 1.5 W

Communication Interface:MODBUS RTU

Operating Voltage:10V DC to 30V DC

Mounting:Panel mount

Dimensions:100mm x 40mm x 20mm

Material:Aluminum Alloy

Enclosure Rating:IP65

    Introducing the AB 2080-TC2 Non-Isolated Thermocouple Module Micro 800, a reliable choice for accurate temperature monitoring in various industrial applications. This module boasts a wide operating temperature range from -40°C to +150°C, ensuring it can withstand harsh conditions typically found in manufacturing processes.

    With compatibility for Types J, K, T, E, S, B, R, and N thermocouples, the AB 2080-TC2 offers flexibility in measuring a multitude of temperature ranges, making it a versatile tool for different industries.

    Featuring exceptional accuracy of +/- 0.5% of full scale, this module ensures precise readings, critical for quality control and process optimization. Its fast response time of less than 1 second allows for real-time monitoring, enhancing operational efficiency.

    The AB 2080-TC2 operates on a maximum power consumption of 50 mA at 24 VDC, providing energy-efficient performance without compromising on functionality. Its input resistance of 1 kΩ at 24 VDC ensures stable and reliable data transmission.

    Engineered for durability and precision, this module is an indispensable component in any industrial control system seeking enhanced accuracy and reliability in temperature measurement.
