Model Type:ControlLogix

Model Number:1756-IF8I

Manufacturer:Allen-Bradley

Weight:0.45 kg

Number of Channels:8

Input Type:Analog

Channel Configuration:Differential Voltage or Current

Data Formats:Multiple

Input Ranges:Flexible

Module Filtering:Yes

Real Time Sampling:Yes

Alarm Detection:Under Range, Over Range, Process Alarms, Rate Alarm, Wire-off Detection

Communication Protocol:ControlNet

Environmental Conditions:Temperature: 0 – 60 DEG C, Humidity: 5 – 95% Non-Condensing, Vibration: 2 G, Shock: 30 G

Power Consumption:Less than 6.2 Watts

Enclosure Type:Conformal coated PCBs

Mounting:Panel

Communication Speed:High-speed

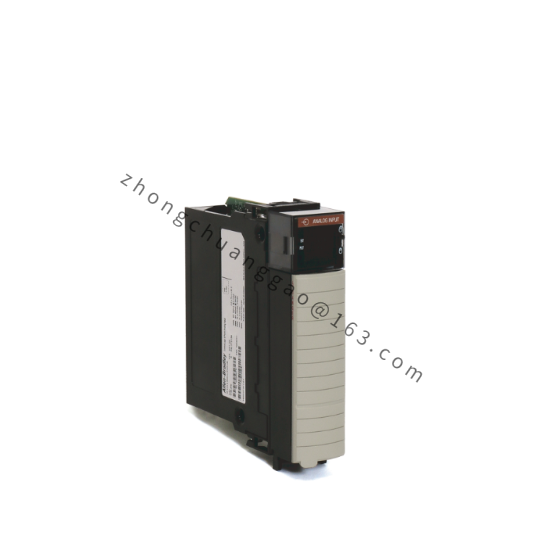

    The Allen Bradley 1756-IF8I ControlLogix Analog Input Module is a robust solution for industrial environments, designed to provide accurate and reliable data acquisition from sensors and actuators. Its differential voltage or current inputs allow for precise measurement of physical phenomena such as temperature, pressure, and flow rate.

    Featuring an impressive eight-channel capacity, this module supports a wide range of input types and voltage levels, making it suitable for various industrial applications. The module’s filtering options and real-time sampling capabilities ensure high-quality data transmission and processing.

    With the capability to detect under and over-range conditions, as well as wire-off scenarios, the Allen Bradley 1756-IF8I provides enhanced safety and operational efficiency. It supports three different data formats, allowing for flexibility in integration with different systems and protocols.

    For enhanced connectivity, this module supports HART communication, enabling advanced diagnostic functions and remote configuration without the need for additional hardware. This feature is particularly beneficial for monitoring and maintenance tasks, enhancing the overall reliability and maintainability of your industrial automation system.

    Built to withstand harsh industrial environments, the Allen Bradley 1756-IF8I ControlLogix Analog Input Module is engineered for durability and long-term performance. Its compact design ensures easy installation and integration into existing control systems, making it a versatile addition to any industrial automation setup.
