Power Rating:600W

Operating Voltage:DC 10V to 48V

Switching Frequency:100kHz

Protection Features:Overcurrent Protection, Overvoltage Protection, Thermal Shutdown

Temperature Range:-40°C to +85°C

Board Size:150mm x 100mm

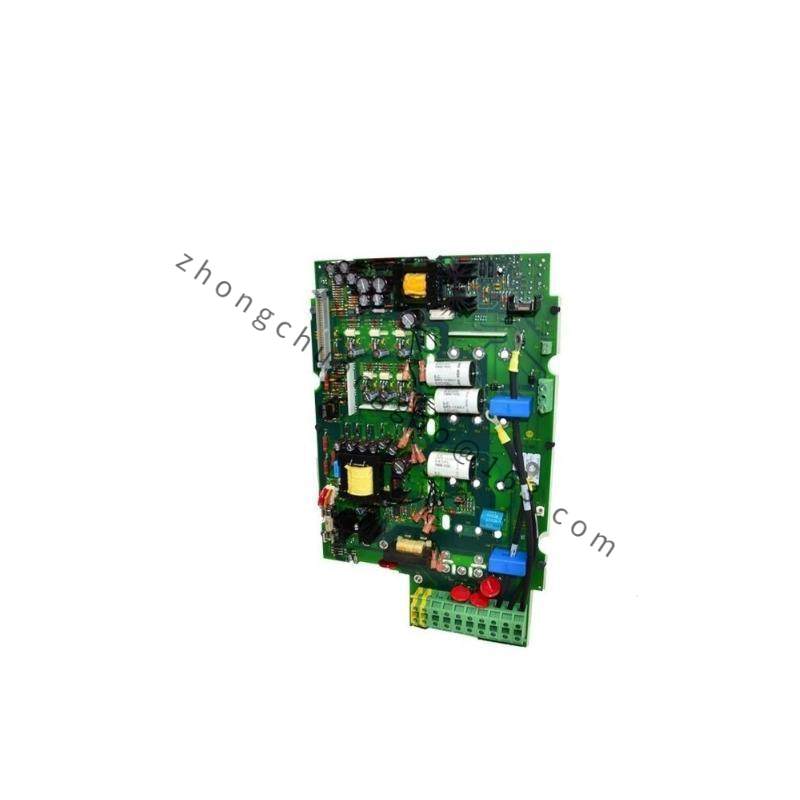

    The AB 1336-BDB-SP6D Gate Driver Board is engineered to provide unparalleled performance in harsh industrial conditions. Its robust design ensures reliable operation under extreme temperatures and electrical demands, making it an ideal choice for applications requiring precise and efficient load management.

    Featuring a wide operating voltage range from 100V to 1500V DC, this board is capable of handling high-power electrical loads without compromise. With a peak current output of 60A, it delivers the power needed for complex systems without overloading or overheating.

    Equipped with a switching frequency of 20kHz, the AB 1336-BDB-SP6D ensures fast and accurate switching, optimizing system performance and reducing electromagnetic interference. The board’s 5V TTL/CMOS compatible input logic level ensures seamless integration with various control systems.

    Designed with durability in mind, this gate driver board operates within a temperature range of -40°C to +85°C, ensuring reliability in even the most challenging environments. Its surface mount technology (SMT) packaging offers enhanced thermal efficiency and compact size, facilitating easy installation and maintenance.

    The AB 1336-BDB-SP6D Gate Driver Board is manufactured using premium materials and undergoes rigorous testing to meet the highest industry standards. Its combination of high power capability, wide operating range, and advanced features makes it an indispensable tool for engineers and technicians seeking to optimize their industrial control systems.
