A-B 2711-K6C9
Product Name

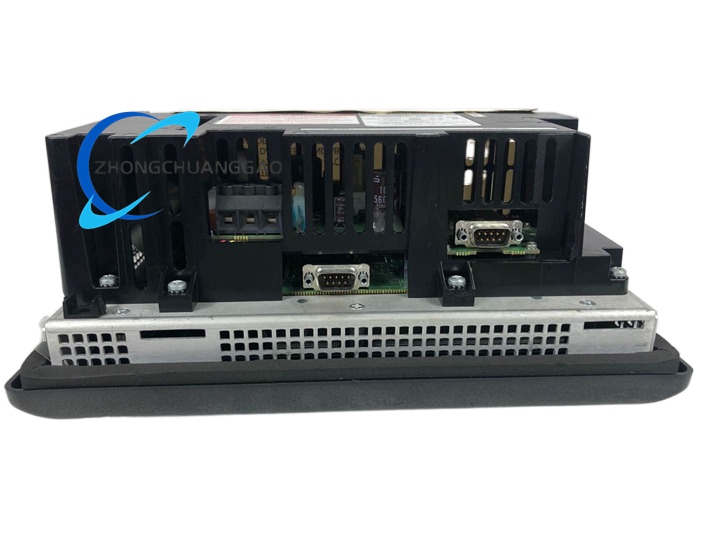

Allen-Bradley 2711-K6C9 PanelView 600 keypad color HMI.
Product Introduction
2711-K6C9 is a PanelView Standard 600 operator terminal with keypad input and color TFT display. It provides machine visualization, alarm display, and PLC access using DH-485 serial communication, intended for SLC and legacy Allen-Bradley control networks.
Detailed content
Technical Specifications
Display: 5-inch-class color active-matrix TFT, 320 x 234 pixels.
Input device: keypad with function keys.
Nonvolatile application memory: 240 KB.
Runtime/application memory: approximately 190 KB.
Communication: RS-232 DH-485; separate RS-232 printer port.
Power: 18 VDC to 32 VDC, 24 VDC nominal.
Maximum power consumption: 34 W at 24 VDC.
Operating temperature: 0°C to 50°C.
Storage temperature: -25°C to 70°C.
Humidity: 5% to 95% non-condensing.
Enclosure: NEMA 12/13/4X indoor, IEC IP54/IP65 front.
Panel cutout: approximately 167 mm x 264 mm.
Backlight: field-replaceable, 50000-hour rated half-life at 25°C.
Some surplus units are listed with 85 VAC to 264 VAC power; confirm nameplate before installation.
Functional Features
Keypad data entry and screen navigation.
Color graphics for alarms, trends, and process values.
DH-485 upload/download with PanelBuilder32.
Printer reporting through dedicated serial port.
NEMA/IP sealed front for industrial panels.
Material Composition and Structure
Sealed steel/plastic bezel, color TFT module, keypad membrane with domed stainless contacts, internal power supply, communication PCB, and rear connector housing.
Working Principle
The terminal polls/project-executes HMI screens stored in nonvolatile memory. Keypad input and PLC data update screen objects. DH-485 messaging exchanges tags with the controller; printer port outputs reports independently.
Installation Requirements
Cut panel aperture to 2711-K6C9 dimensions. Use NEMA gasket for 4X/IP65 front seal. Supply 24 VDC nominal with margin for 34 W. Connect DH-485 to SLC/PLC with correct node settings. Use PanelBuilder32 for application transfer.
Usage Notes
Confirm DH-485 versus DH+ requirement before replacement; this catalog number is DH-485 keypad. Replace backlight according to half-life rating. Do not operate above 50°C ambient. Maintain spare application file for reload after memory replacement.
